BUILD YOUR BUS CCTV KIT WITHOUT STRESS

If you are looking to kit out a fleet of buses with CCTV then you are probably trying to mimic what the tier 1 operators are doing. Having worked with tier 1 operators, SURE Transport understands that choosing cameras, digital video recorders and placement/angles of the equipment can be confusing. We have tried to make it as simple as possible so that you get a package that is right for you. All of our kits are designed with the customer in mind. All of our bus fit-outs come with installation, warranty and equipment that is right for you.


Step 1 - Pick a Digital Video Recorder

Finding the right Digital Video Recorder

A digital video recorder (DVR) is an electronic device that will record video and audio in a digital format. These digital formats can include SD cards, hard drives, USB or SSD. The devices we supply for buses have channels ranging from 5 - 24 outputs which will directly hard wire to the cameras that are being used to capture the video. When building CCTV into your vehicle you will need a DVR, a camera, passenger monitor and the cabling. Then you have optional additions including WiFi, GPS, 4G, software and many others. Request a quote if you need any further information.

SURE MDVR9 digital video recorder

Digital Video Recorder
SURE MDVR9

This SURE MDVR9 is a 9 channel AHD and IP output digital video recorder. With eight channels of AHD and one of 1080p IP, this device will record video in 720p and 1080p. Cameras are then directly wired into the back of the device to store video/audio. This device supports WiFi and GPS and cameras plugged into this device can be remotely monitored for live image viewing.

• H.264 compression to provide high quality at a small file size.
• Hybrid analog (720p), AHD / IP (1080p)
• User-friendly interface
• Easy to use operating system
• Individual channel configuration
• Remote access to change ‘Settings’ and 'Multi-Camera Live Image’ viewing facilities
• USB support for backup and configuration
• Wifi, Mobile Network and GPS Support
• 4G optional
• Full network capabilities
• RS-232/RS-485 Support for PTZ
See More / Download Spec Sheet
Timespace V400 digital video recorder

Digital Video Recorder
Timespace DVRV400

This V400 DVR can come in an 8, 12 or 16 channel analogue/IP output option. Each option comes with one independent 1080p IP channel however all of the other outputs aren't HD resolution. The device comes with up to 2TB of hard-drive storage with an additional 128gb SD card.

The X301 Reviewer is used to program the menu settings on the V400, check camera views and list the recorded files on the installed Hard Disk Cartridge.

• H.264 compression
• 1080p HD IP Camera support
• Up to 25 images per second recording from each camera
• Maximum 200 images per second depending on model
• File password protection and encryption settings
• Bridge Alert - Timespace low bridge warning system
• 8, 12 or 16 independent video channels with up to 200ips
• Analog and 1* IP camera
• Transport for London diagnostic reporting with dual LAN ports
• Quick install, compact, integrated one box solution
• Up to 2TB recording media with additional backup SD card
• Removable, fully suspended hard drive for long term reliability
• Easy-audit and Playback with local Reviewer
See More / Download Spec Sheet
Timespace R500 digital video recorder

Digital Video Recorder
Timespace DVRV500

The Timespace V500 DVR is the new kid on the block. This DVR hasn't had the same time to grow in popularity but comes with all of the features of the V400 DVR and more!

This DVR V500 comes ready to record 16 analogue cameras and 8 IP cameras, totalling 24 cameras.

• H.264 compression
• 8x 1080p HD IP Camera support
• Maximum 200 images per second
• File password protection and encryption settings
• Bridge Alert - Timespace low bridge warning system
• 24 independent video channels
• Transport for London diagnostic reporting with dual LAN ports
• Quick install, compact, integrated one box solution
• Up to 2TB recording media with additional backup SD card
• Removable, fully suspended hard drive for long term reliability
• Easy-audit and Playback with local Reviewer
See More / Download Spec Sheet

Step 2 - Pick up to 24 CCTV Cameras

Finding the right Camera

The CCTV cameras which you wish to install in your van can be varied. You don't need to have 24 of the same cameras so feel free to mix'n'match the cameras we recommend below. All cameras in this section are simple to install and can be provided with a fitting wedge if the camera needs to be angled.

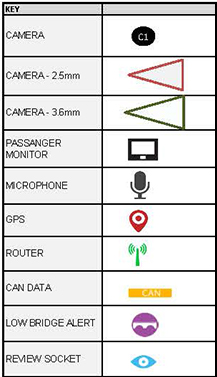

Typical camera selection

Typical camera selection is:

4x D056C650 (2.9mm lens)

7x D056C650 (3.6mm lens)

1x D057-650-S

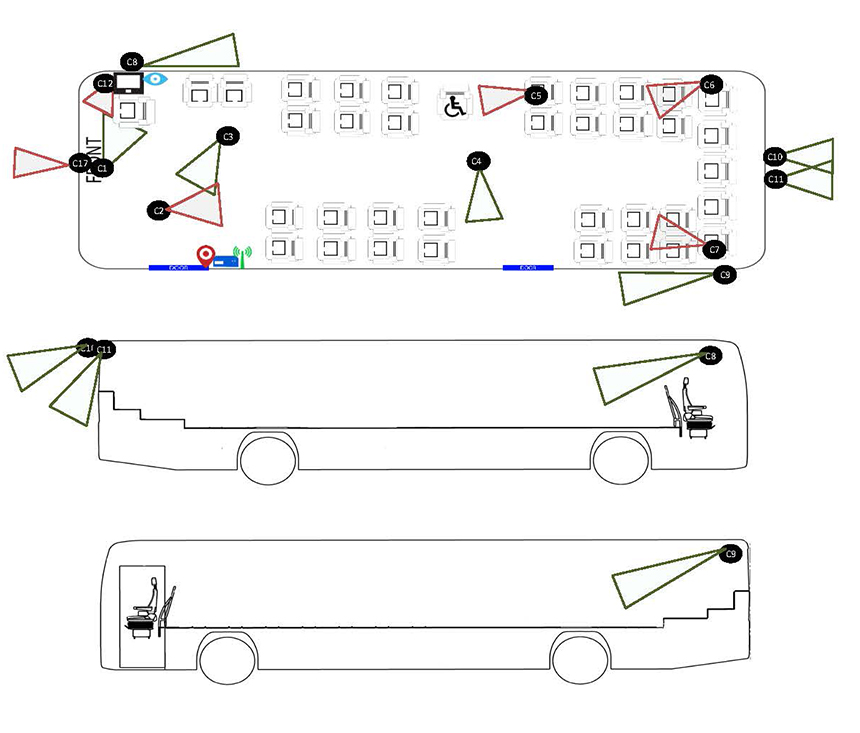

bus camera positions
bus camera positions
Stortech D056-AHD-PC cctv camera

CCTV Camera
Stortech D056-AHD-PC

This Stortech dome camera is a polycarbonate micro dome camera, 960P AHD which can come with either a 2.5mm or 3.6mm lens, colour/black and white, mirror image cut loop and IP67 weatherproofing.

Works with the SURE MDVR range!
See More / Download Spec Sheet
Stortech D057-AHD-2.5 cctv camera

CCTV Camera
Stortech D057-AHD-2.5

The main difference between this D057-AHD camera and the D056-AHD-PC camera is that this D057 has an IR sensor. This allows the camera to operate in pitch black using night vision to capture recordings.

Works with the SURE MDVR range!
See More / Download Spec Sheet
Stortech D056C650 cctv camera

CCTV Camera
Stortech D056C650

This Stortech D053-DPX-PC dome camera is a polycarbonate micro dome camera, 520TVL which can come with either a2.9mm or 3.6mm lens, colour silver, full 360° degree coverage and IP66 weatherproofing.

Works with the Timespace DVR range
See More / Download Spec Sheet
Stortech D056C650 cctv camera

CCTV Camera
Stortech D057-650-S

What separates this dome from the D056C650 dome is the IR capabilities. This dome is able to record picture clearly at night so is often used on the outside of a vehicle (front camera on a bus).

Works with the Timespace DVR range
See More / Download Spec Sheet

Step 3 - Software with your devices

Knowing the software that comes with your devices

The software will play a crucial part in the way you monitor your CCTV and what you can do. If you purchase any of the Timespace devices above then you will automatically receive LAN Link and PC Link to help manage the CCTV systems and live view on a desktop or mobile device.

SURE Enterprise

SURE Enterprise

SURE can provide and advise on suitable technology to monitor an entire fleet from PSV to engineers’ and support vehicles. The recently released ‘SURE Enterprise’ software brings multiple depot systems together into one centralised management system.

Developed internally with over £100,000 investment, SURE Enterprise is an accumulation of years of expert industry knowledge that will be invaluable to operators when delivering CCTV footage quickly to the people who need it.

The implementation of SURE Enterprise consolidates the health of buses across the fleet from multiple sites, therefore, reducing manpower and facility costs dramatically.

These features and can be deployed within an operator’s own network or on a secure cloud-based platform. It is not solely the bus company that may need to see CCTV footage. The police and insurance claims handlers will want to view it retrospectively too if an incident has occurred.
Read More
PCLink Timespace SURE

Timespace PCLink

• File password protection and encryption for footage downloads
• Object/face-blurring tool.
• User-friendly timeline playback and review controls
• Alarm and motion markers for rapid analysis of critical footage
• GPS and G sensor for map and driving analysis
• Audio playback with video footage
• GPS Location playback
• Mouse-wheel zoom
• IP Camera playback
• Compatible with all Timespace digital video recorders
• Support for displaying J1939 CAN and FMS data in footage recorded with the new Timespace CANLink module.

Live View
• Multi-camera Live video streaming via Wifi and 3G
• Playback of recorded files
• Remote menu set-up and configuration of the recorder
• Real-time Live map location
Read More
LanLink SURE Transport Timespace

Timespace LANLink

The LANLink system is designed to provide both Automatic Downloads and a Health Overview for a number of Timespace Digital Video Recorders (X200, X300, X500, V400 & V500).

The DVRs may be connected either permanently or intermittently via LAN, WLAN (wifi) or 3G/4G IP network.

Each time a unit comes into contact with the LANLink system, the service log is interrogated to determine its health. A traffic light system is used to display the current status of each unit and a file list of recorded files is gathered from the DVR so that files can be selected for downloading.

LANLink is a MySQL database driven application with a web based front end which can be accessed using any web browser.

For specific details of LANLink’s features and functions, please contact Timespace.
Read More

Every SURE Transport system is custom designed to meet your exact requirements and can be delivered to you at a time and place that suits you. Alternately we can arrange one of our expert installers to fit at any location in the UK.


As well as a range of hardware, SURE can provide software to manage your vehicles and data contacts for remote access.

Call us on 01949 836 990 to discuss your needs.
