SUREVIEW
The TFT Monitor

The camera (also 720p HD output) provides 0 Lux when the IR LED is on to avoid disruption when outdoor lighting changes (tunnels or day/night cycle).

SUREVIEW

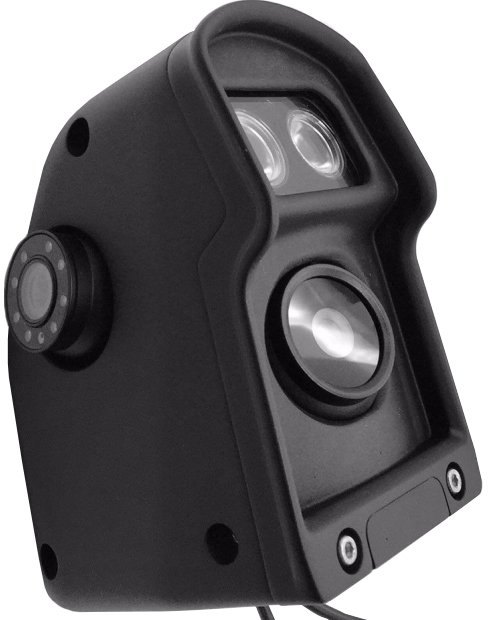

The MSV8 Camera

The electronic shutter is completely automatic and the camera has 8 infrared LEDs attached. Finally the camera is 100 x 85 x 97 mm and is IP67 weatherproof to avoid damage when heavy rain strikes the device.

TFT Monitor & MSV Cam

Active Display Area

Built-in Reverse Trigger

Pixel Pitch

Bezel Thickness

Contrast Ratio

Brightness

Viewing Angle

Video Synchronization

PC Compatible Frequency

Adjustable Colour Temperature

Video Compatiblity

VGA Auto Frequency correction

Number of Speakers

Work Humidity

Work Temperature

Volume +/- Power On/Off

Video Interface

Power Interface

Termination

Safety & EMC Certification

Vesa Standard Mount

Stand Type

Packing Dimension

NET Weight

GROSS Weight

Features

101.568 x 76.17 6 (V) mm

Yes

0.0529 (H) x 0.1587 (V) mm

24.21 mm

500 : 1 Ratio

200 cd/ m²

U/D: 50° / 70°, L/R: 70° / 70°

 Yes

30-80KHz(H) / 50-75Hz(V) Max. 640 x 480

9300K / 6500K / 5800K / User

Multi-Standard for NTSC / PAL

Yes

No

20 % – 70 %

-10 to 50 °C

Yes

8 pin mini din connector (not BNC)

DC In x 1

75 Ohms (Automatic termination)

ROHS-2, CE, FCC, C-Tick, E13, WEEE

44 x 24 mm (in base)

Multi Functional Desktop/Wall mount

270 (W) x 210 (H) x 120 (D) mm

0.8 Kg

1.1 Kg

Sureview
wing mirror camera

SURE Erases Vehicle Blind Spots Through Cameras

On 7th of May 2019, SURE Transport introduced the 'SUREVIEW'. The SUREVIEW was bought to market after decades of drivers crying for technology innovators to eliminate the problem of heavy vehicle blind spots.

A London bus network reported to have had roughly 20,000 safety incidents in the past three years according to the Financial Times and a lot of these were reported to be due to complacency and restricted view.

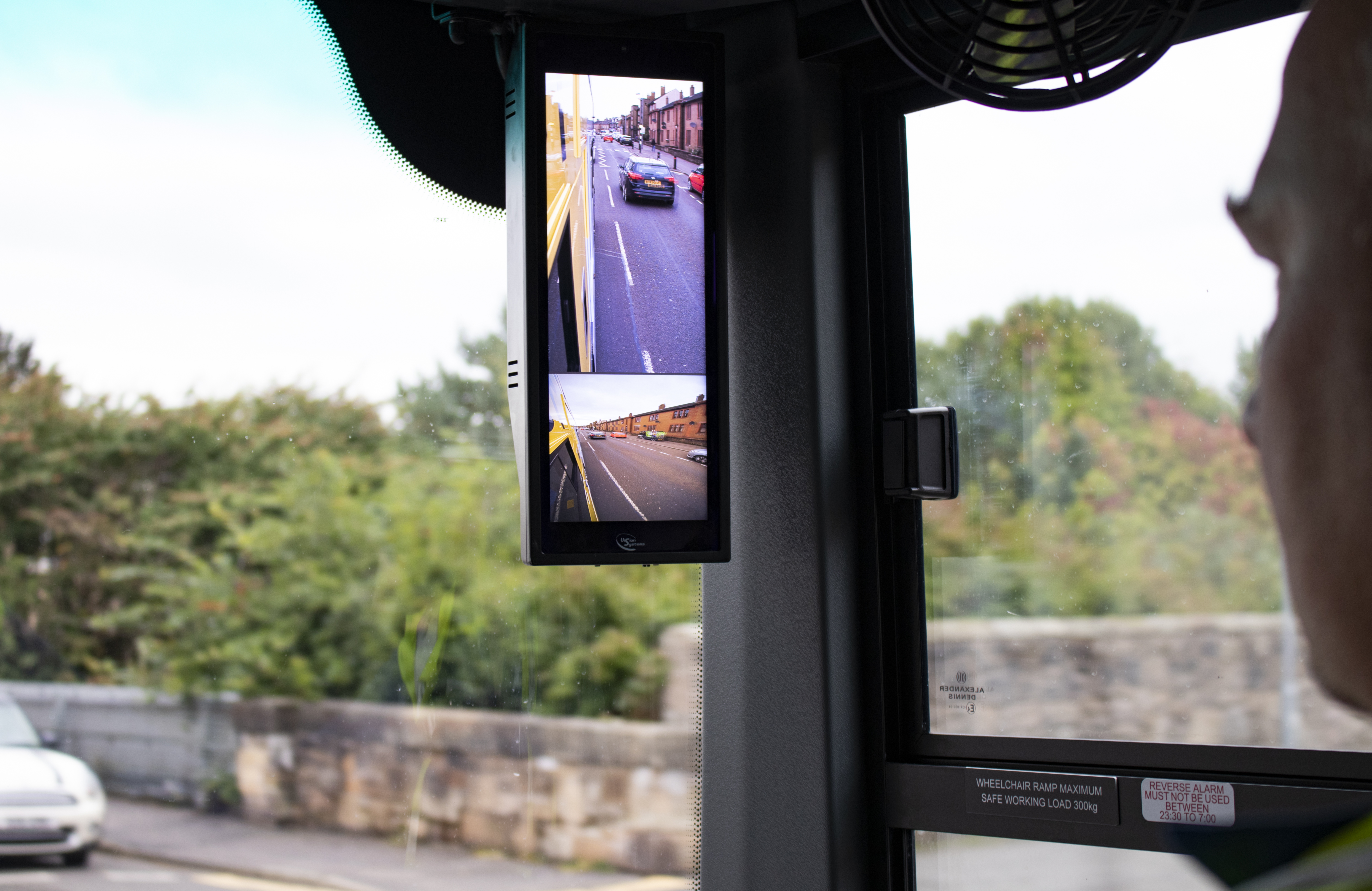

The SUREVIEW camera/monitor is set to erase the problem of blind spots using HD cameras and internal monitors whilst driving heavy vehicles. Compact MSV18 cameras are fitted to the sides of the bus and the monitor is located inside the vehicle with split screened display.

This mirrorless camera fits externally on the vehicle to replace bulky wing-mirrors whilst driving heavy vehicles. This compact camera provides clear HD video for monitoring on the TFT-LCD screen. This camera also comes with built-in IR LEDs for viewing footage in low light conditions (night or tunnels).

The camera provides high-definition video output to give the driver a crisp picture of the surroundings of the vehicle. With monitors fitted internally the driver doesn't need to turn their head therefore avoiding the risk of hitting passers by.

Published on 31st May 2018, Audi announced that their e-tron electric car would be available with video cameras instead of wing mirrors and since then it has hit the automotive industry by storm.

Go-Ahead London Depot
MSV18 Camera Dimensions
