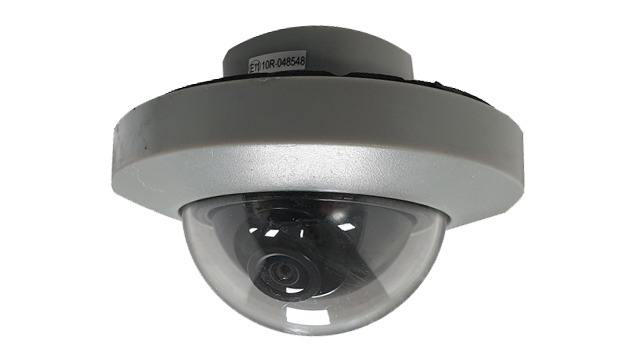

Stortech D053-DPX(S) Microdome Series

This dome analogue vehicle camera is lightweight in a polycarbonate housing finished with silver. The camera uses wide dynamic range to capture crisp footage whilst in both low light and bright light conditions/areas. This camera is also flush-mounted with IP66 weather resistance to prevent damage to the camera whilst operating on the outside of the vehicle.

Sensor
1/3” CMOS WDR Sensor
Resolution
550TVL
Sensitivity
0.22 lux
Weather-Proofing
IP66
Picture Elements
550(H) x 450(V)
Wide Dynamic Range
Low / Middle / High
VCA Approvals
E11 E-Marked
S/N Ratio
58dB or more (AGC off)
Voltage
12vDC (6.0v ~ 20.0v)
Dimensions
Ø80 x 42.5H
Operating Temperature
-30°C ~ +80°C
Shutter Speed
1/60s - 1/66,000s
Power Consumption
< 80mA
    D053-DPX Stortech

    D053-DPX(S)

    ○ 3.6mm Lens
    ○ 550TVL resolution
    ○ CMOS sensor
    ○ Wide Dynamic Range
    ○ 360° coverage
    ○ IP66 weather-resistant
    ○ E-Marked
    D053-DPX schematic

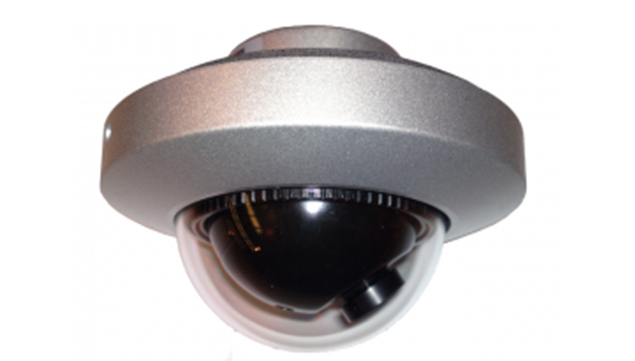

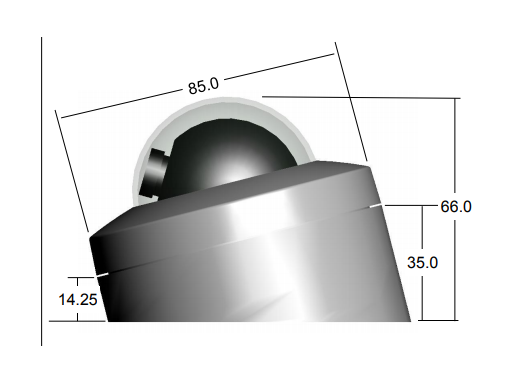

    Stortech D056C650 Microdome Series

    This dome analogue vehicle camera is flush-mounted with IP67 waterproofing making it much more substantial when liquids are present near the equipment. The IP67 rating allows the camera to be submerged temporarily in water at depths of up to 1 meter and therefore the camera will operate on the outside of a vehicle where it will likely be subject to both rain and water when the bus/coach is cleaned.

    Sensor
    Sony® Super HAD ll CCD
    Resolution
    500TVL / 650TVL
    Sensitivity
    0.05 lux @ F1.2
    Weather-Proofing
    IP67
    Picture Elements
    500H x 520V / 752H x 582V
    Video Output
    1v p~p 75Ώ Composite
    VCA Approvals
    E11 E-Marked
    S/N Ratio
    > 50dB (AGC Off)
    Gamma Ratio
    0.45
    Lens Mount
    M12 x P 0.5mm Thread
    Pan Adjustment
    ±180°
    Tilt Adjustment
    0~55°
    Power Consumption
    < 80mA
      D056C650-DPES-PC Stortech

      D056C650-DPES-PC

      ○ 2.5, 2.9 or 3.6mm Lens
      ○ 650TVL resolution
      ○ CCD sensor
      ○ Reverse trigger optional
      ○ 360 coverage
      ○ IP67 weatherproof
      ○ E-Marked

      Installation Instructions

      ○ Unscrew the top cover (3).

      Attach the mounting base (4) to the wall or ceiling. Locate a wall stud or ceiling joint and secure the base using the screws provided. The screws shown (5) are for attaching camera to mounting adaptor. Standard screws and plugs are supplied for mounting direct to ceiling/wall.

      ○ Connect BNC video jack to the monitor and connect DC power jack to 12vDC power source.

      When picture shows on the monitor, loosen the knurled ring (6) for setting view (and focus-locking screw (7) if re-focussing is required). Adjust the camera view by moving the ball (8).

      ○ Fix the ball in position by re-tightening the knurled ring (clockwise).

      Use the supplied Torx® key (1) and tamper screw (2) to lock the top cover

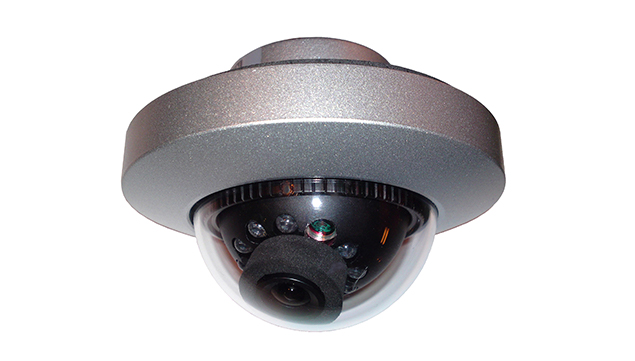

      Stortech D057-650 (optional COV) Microdome Series

      This dome analogue vehicle camera is also flush-mounted with IP67 waterproofing however the D057 Series comes with IR LEDs surrounding the lens to allow for recording in low light levels. The COV series uses covert IR LEDs at 940 nanometers which means there is no red light on the camera whilst recording. This is important in vehicle CCTV as it means the red light won't be confused with brake lights for other road users.

      IR LED Illumination
      Up to 5M (850nm/940nm)
      Sensor
      Sony® Super HAD ll Colour/Mono CCD
      Resolution
      650TVL
      Sensitivity
      0.05 lux @ F1.2
      Weather-Proofing
      IP67
      Picture Elements
      500H x 520V / 752H x 582V
      Video Output
      1v p~p 75Ώ Composite
      VCA Approvals
      E11 E-Marked
      S/N Ratio
      > 50dB (AGC Off)
      Lens Mount
      M12 x P 0.5mm Thread
      Pan Adjustment
      ±180°
      Tilt Adjustment
      0~55°
      Power Consumption
      80mA/150mA - LEDs Off/On
        D057-650 Stortech

        D057-650-S (COV)

        ○ 2.5, 2.9 or 3.6mm Lens
        ○ 650TVL resolution
        ○ Sony Super II CCD sensor
        ○ IR w/ 850nm or 940nm
        ○ Illumination up to 5m
        ○ IP67 weatherproof
        ○ E-Marked

        Stortech D056-AHD-PC Microdome Series

        The AHD version of the D056 offers high-definition recording in 960p resolution on a 2.5m lens. The D056-AHD is also E-Marked for vehicle use and is compatible with the MDVR and Timespace range.

        Sensor
        1/3”AHD CMOS Digital Sensor
        Resolution
        960p
        Effective Pixels
        1.3M Pixels
        Weather-Proofing
        IP67
        Picture Elements
        1280(H) x 960(V)
        Video Output
        1 V p-p, Composite, 4 Way Din Aviation Connector
        VCA Approvals
        E11 E-Marked
        S/N Ratio
        > 50dB (AGC Off)
        Lens
        2.5mm Fixed Megapixel Lens
        Pan Adjustment
        ±180°
        Tilt Adjustment
        0~55°
        Power Consumption
        80mA/150mA - LEDs Off/On
        Wide Dynamic Range
        ~ 85db
          D056 AHD Stortech

          D056-AHD-PC

          ○ 2.5mm Lens
          ○ 960p HD resolution
          ○ AHD CMOS sensor
          ○ IR cut filter
          ○ 360 coverage
          ○ IP67 weatherproof
          ○ E-Marked
          Wide Dynamic Range
          Resolution Comparison HD

          Stortech D057-AHD-S Microdome Series

          This dome analogue vehicle camera is also flush-mounted with IP67 waterproofing however the D057 Series comes with IR LEDs surrounding the lens to allow for recording in low light levels. The COV series is covert

          Infrared Range
          8Mtr @ 850nm
          Sensor
          1/3”AHD CMOS Digital Sensor
          Resolution
          960p
          Effective Pixels
          1.3M Pixels
          Weather-Proofing
          IP67
          Video Output
          1 V p-p, Composite, 4 Way Din Aviation Connector
          Picture Elements
          1280(H) x 960(V)
          VCA Approvals
          E11 E-Marked
          S/N Ratio
          > 50dB (AGC Off)
          Lens
          2.5mm Fixed Megapixel Lens
          Pan Adjustment
          ±180°
          Tilt Adjustment
          0~55°
          Power Consumption
          80mA/150mA - LEDs Off/On
            D057-AHD-S Stortech

            D057-AHD-S

            ○ 2.5 or 3.6mm Lens
            ○ 960p HD resolution
            ○ CMOS sensor
            ○ IR w/ 850nm wavelengths
            ○ Illumination up to 8m
            ○ IP67 weatherproof
            ○ E-Marked
