Vigilant Vision Monitor DSM10WGF

Vigilant Vision Monitor
DSM10.4LED-WGF

○ Vigilant Vision ○ 10.4" (Aspect Ratio 4:3)
○ Metal case ○ 800x600 resolution ○ 30ms response time ○ PAL/NTSC ○ 16.7 display ○ BNC (in x1) (out x1)
○ 12v 1AMP power ○ Viewing Angle U/D: 50° / 60°, L/R: 75° / 75° ○ Contrast Ratio 500 : 1 Ratio ○ VGA In BNC In x 1, BNC Out x 1
Buy Now
Primary Specification

This 10.4" LED monitor with a metal case comes with 800x600 resolution. This monitor is perfect for viewing CCTV camera footage and the angle of the monitor can be adjusted (up/down) 50°/60° (left/right) 75°/75°

-----------------------------------------------------------------------------

PRIMARY SPEC

Active Display Area 211.2 x 158.4 (V) mm

Pixel Pitch 0.264 (H) x 0. 264 (V) m m

Bezel Thickness 27.9 mm

Brightness 250 cd/ m²

Display Colours 16.7 M

Video Synchronization Yes

PC Compatible Frequency 30-80KHz(H) / 50-75Hz(V) Max. 800 x 600

Video Compatiblity Multi-Standard for NTSC / PAL

VGA Auto Frequency correction Yes

Number of Speakers No

Sound Demodulation N/A

Mute N/A

Work Humidity 20 % – 70 %

Work Temperature -10 to 50 °C

Volume +/- Power On/Off Power ON/OFF Only

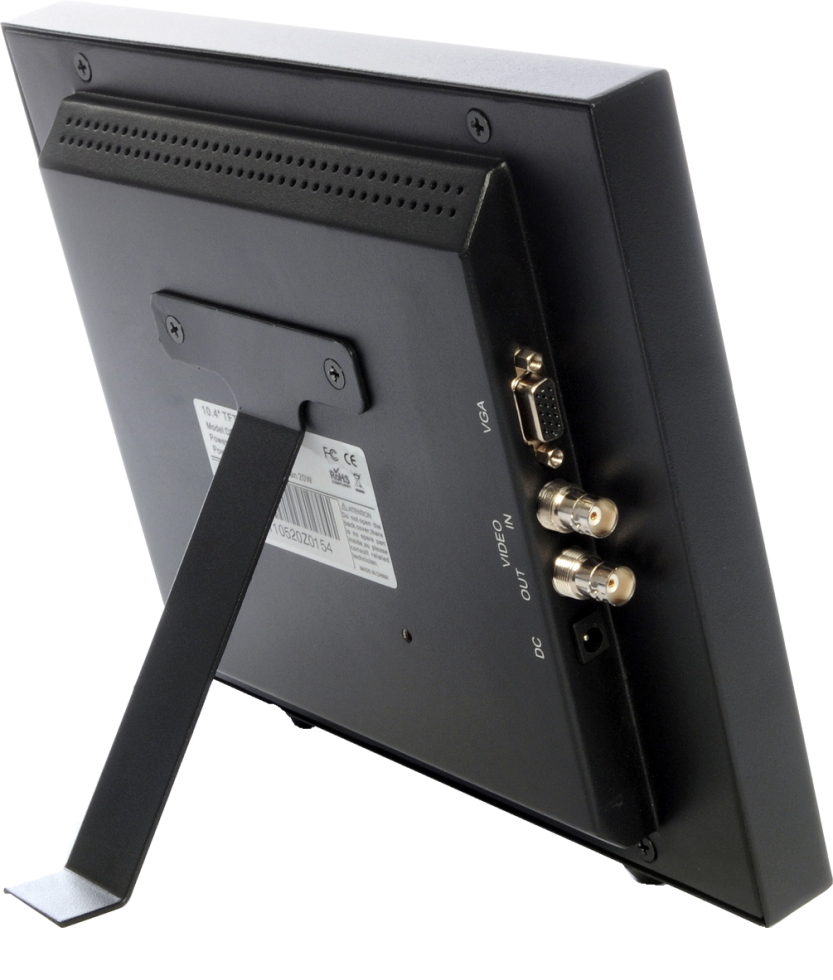

 VGA In BNC In x 1, BNC Out x 1



IN/OUT INTERFACE

Audio Interface None

Power Interface DC In x 1

Termination 75 Ohms (Automatic termination)

Safety & EMC Certification ROHS-2, CE, FCC, C-Tick, E13, WEEE

Vesa Standard Mount 75 x 75 mm

Stand Type Desktop

Colour Black



DIMENSIONS

Packing Dimension 380 (W) x 340 (H) x 110 (D) mm

NET Weight 1.7 Kgs

GROSS Weight 2.4 Kgs



POWER

Power Supply: 12v 1AMP

Voltage: AC100 – 240V 50 / 60Hz

Power Consumption: < 12W in “ON”



Why buy me?

This 10.4" LED monitor with a metal case comes with 800x600 resolution. This monitor is perfect for viewing CCTV camera footage and the angle of the monitor can be adjusted (up/down) 50°/60° (left/right) 75°/75°

-----------------------------------------------------------------------------
