What is the SUREVIEW Wing Mirror System?

Internal Electronic Wing Mirror System

On 7th of May 2019, SURE Transport introduced the 'SUREVIEW'. The SUREVIEW was bought to market after decades of drivers crying for technology innovators to eliminate the problem of heavy vehicle blind spots.

This device erases the problem of blind spots using HD cameras and internal monitors whilst driving heavy vehicles.

 A London bus network reported to have had roughly 20,000 safety incidents in the past three years according to the Financial Times and a lot of these were reported to be due to complacency and restricted view.

Compact SVMCAM cameras are fitted to the sides of the bus and the monitor is located inside the vehicle with a split-screened display.

The camera provides high-definition video output to give the driver a crisp picture of the surroundings of the vehicle. With monitors fitted internally, the driver doesn't need to turn their head therefore avoiding the risk of hitting passers-by.

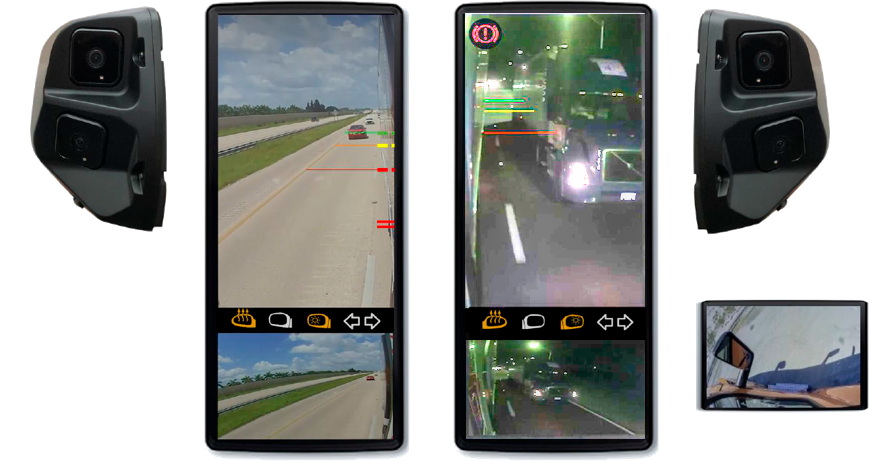

Electronic Wing Mirror Camera

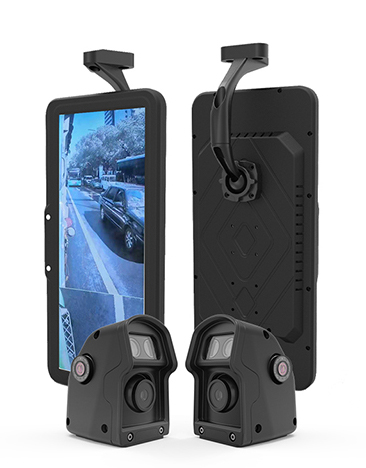

Full Wing mirror kit

Internal Wing Mirror Monitors

Features:

 Compact SVMCAM cameras are fitted to the sides of the bus and the monitor is located inside the vehicle with split screened display.

  • High Definition: HD refers to high definition or 720p/1080p resolution, 1080p is known as Full HD. This resolution is a significant step up from 480p which can be seen in the image (on the right). The first figure (1920) refers to horizontal pixels and the second figure (1080) denotes vertical resolution. The simple difference between HD and SD images is the number of pixels contained in the image

  • 12.3" Screen: This internal screen is split into 2/3 and 1/3. T
Screen Size
12.3inch (8:3) IPS
Resolution
1920 * 3 (RGB) * 720 Pixel
View Angle
L: 85° / R: 85° / U: 85° / D: 85°
Active Area
292.32 (H)* 109.62 (V) [mm]
TV System
PAL & NTSC (Auto)
Brightness
750cd/m2
Contrast
1000:1
Power Supply
DC10V-32V
Power Consumption
MAX 25W
Working Temperature
-40℃~+75℃
Storage Temperature
-40℃~+75℃
Signal Interface
4pin Din Aviation Male Connector
Video Input
2ch Video Input (AHD 720P/1080P)
    SURE MDVR 4 Channel DVR

    SUREVIEW Monitor

    ○ 12.3" (8:3) IPS
    ○ 720/1080p resolution
    ○ PAL
    ○ L: 85° / R: 85° / U: 85° / D: 85°
    ○ Remote Control
    ○ DC10V-32V
    ○ Weight: 1035g

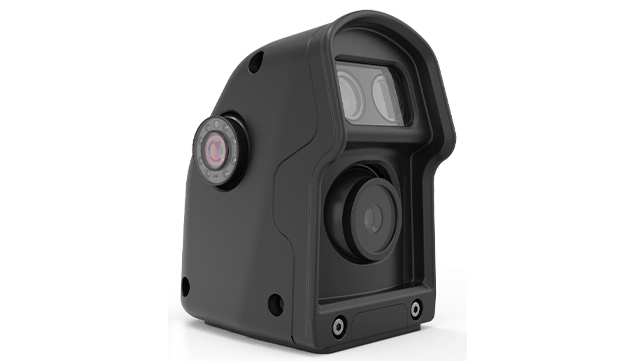

    SVMCAM-2 Wing Mirror Camera

    Features:

     Compact SVMCAM cameras are fitted to the sides of the bus and the monitor is located inside the vehicle with split screened display.

    • 850nm IR: 850nm will provide night vision recording over 5M away whilst still retaining image quality with most having a performance increase of over 40% compared with 940nm. IR wavelengths are measured in nanometers (nm) which are used to specify the wavelength of electromagnetic radiation near the visible part of the light spectrum, these wavelengths can go up to a maximum of 1050nm.

    • Wide Dynamic Range: So what is Wide Dynamic Range? When part of an image is extremely bright but another part is so dark that you can't see any details, that's dynamic range—the difference in lighting. Cameras with wide dynamic range (WDR) have special software that allows them to balance that lighting for one clear image.

    • IP67 Weatherproofing:
          - (6) Totally dust-tight. Full protection against dust and other particulates, including a vacuum seal, tested against continuous airflow.
          - (7) Protection against full immersion for up to 30 minutes at depths of 3 feet.
    Sensor
    Sony 1/3.2"
    Resolution
    720p
    Sensitivity
    0 lux (IR LEDs ON)
    Weather-Proofing
    IP67
    Picture Elements
    1280 (H) x 960 (V)
    Wide Dynamic Range
    Yes
    VCA Approvals
    E11 E-Marked
    S/N Ratio
    46dB or more (AGC off)
    Voltage
    12vDC
    Dimensions
    144 x 88 x 119mm
    Operating Temperature
    -30°C ~ +70°C
    Lens
    2.5/3.6mm
    Power Consumption
    160mA (Max)
      D053-DPX Stortech

      SVMCAM-2

      ○ 2.4/3.6mm Lens
      ○ 720/1080p resolution
      ○ CMOS sensor
      ○ Wide Dynamic Range
      ○ IP67 Weatherproof
      ○ 120dB Dynamic Range
      ○ 3D Noise Reduction
