The Timespace V Series

There is no one size fits all system when it comes to heavy vehicles however when it comes to digital video recorders, the Timespace V400 tops them all. Bus manufacturers will often require different specification dependent on the layout of the vehicle however the popular fit out includes a D056C650 camera and a Timespace DVRV400, X300 or DVRV500.

Customer Benefits

"Timespace Technology have been designing and manufacturing digital video recorders since 1998."

○ Best of Breed Technology
○ H.264/H.265 Compression
○ Compatible with LANLink and PCLink for Live Viewing
○ 8, 12 or 16 Independent Video Channels with up to 200ips
○ Quick Installation
○ Built-in Power Supply
○ Up to 2TB of Storage for Video Files
○ E-Marked Approval
○ Compatible with other Timespace Accessories
○ Analogue / IP Channels Available
○ GPS, Wi-Fi and G-Sensors

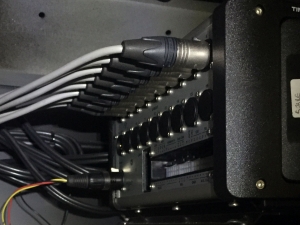

Typical V400 Installation

Timespace V400 in operation

Get a Quote for your Vehicle Today!

Timespace V400 Digital Video Recorder

"Built to last, the V400 uses industry-proven power and signal connectors with short circuit protected camera inputs, whilst the inbuilt timer shutdown with hibernate mode using Wi-Fi option wake on LAN provides an efficient solution for uploading incident footage and system software updates. Industry-leading PCLink viewing software is compatible with all Timespace recorders and displays the V400 inbuilt G-sensor and optional GPS data, providing dynamic map location to assist with driver training, leading to reduced fuel costs and leading to improved passenger comfort." (source)

Available Channels
8 / 12 / 16
Images per Second
100 / 150 / 200 IPS
Compression
H.264
Security
File Password Protection and Encrypted
Storage
4TB
G-Sensor
3-Axis
VCA Approvals
E11 E-Marked and R118 Certified
Solid State Disk
1TB / 1TB / 1TB
IP Camera Resolution
1080p Full HD
Alarm Inputs
10 Way Molex Mini
Audio Microphone Inputs
2 Inputs
Operating Temperature
-10 to 50 ºC
Weight
2.61kg
    Timespace DVRV400

    Timespace DVRV400

    ○ 8, 12 or 16 channels
    ○ H.264 video compression
    ○ 2TB HDD cartridge
    ○ 1080p HD IP camera support
    ○ Built-in GSensor, optional GPS
    ○ File encryption
    ○ E-Marked

    Installation Instructions

    "The V400 is designed to be mounted on its base plate; horizontally or vertically in any axis, but on a strict perpendicular angle. For wall mounting with the V400 horizontal, the right angle plate accessory must be used.

    It is recommended to power the V400 via the two power input pins on the 5 pin XLR connector. For maximum reliability, Timespace recommends that the power feed should be split and wired to both pins. In addition, it is recommended to wire an ignition feed to ALARM1 on the Molex connector.

    The V400’s built-in GSensor must be configured during the installation process. Once the V400 is installed, the direction of the front and side panel must be set e.g. Front panel FORWARDS means the V400 front panel is facing the front of the vehicle, therefore the Connector Panel must be either LEFT, RIGHT, UP or DOWN depending on the mounting position. After configuring the V400 orientation, the GSensor readings must be zeroed." (source)

    V400 Mounting Plate

    Timespace V500 Digital Video Recorder

    "The Timespace V500 builds on the proven V400 platform and is a hybrid recorder offering 16 channels of analogue (SD) video plus 8 channels of 1080P (HD) video. Built in ‘Power Over Ethernet’ (PoE) and industry standard connectors enable quick and reliable installation, and with 4 programmable video outputs, the V500 is an ideal CCTV recorder for integration into a wide range of vehicles. (source)

    Available Channels
    24 (8 IP & 16 Analogue)
    Images per Second
    200 IPS
    Compression
    H.264
    Security
    File Password Protection and Encrypted
    Storage
    4TB
    G-Sensor
    3-Axis
    VCA Approvals
    E11 E-Marked and R118 Certified
    Solid State Disk
    1TB
    IP Camera Resolution
    1080p Full HD
    Alarm Inputs
    10 Way Molex Mini
    Audio Microphone Inputs
    2 Inputs
    Operating Temperature
    -10 to 50 ºC
    Weight
    3.15kg
      Timespace DVRV500

      Timespace DVRV500

      ○ 16 channels + 8 IP channels
      ○ H.264 video compression
      ○ 2TB HDD cartridge
      ○ 1080p HD IP camera support
      ○ Built-in GSensor, optional GPS
      ○ File encryption
      ○ E-Marked

      Installation Instructions

      "The V500 is designed to be mounted on its base plate; horizontally or vertically in any axis, but on a strict perpendicular angle. For wall mounting with the V500 horizontal, the right angle plate accessory must be used.

      It is recommended to power the V500 via the two power input pins on the 5 pin XLR connector. For maximum reliability, Timespace recommends that the power feed should be split and wired to both pins. In addition, it is recommended to wire an ignition feed to ALARM1 on the Molex connector.

      The V500’s built-in GSensor must be configured during the installation process. Once the V500 is installed, the direction of the front and side panel must be set e.g. Front panel FORWARDS means the V500 front panel is facing the front of the vehicle, therefore the Connector Panel must be either LEFT, RIGHT, UP or DOWN depending on the mounting position. After configuring the V500 orientation, the GSensor readings must be zeroed using ZERO THE ACCELEROMETER in:

      SYSTEM SETTINGS > GSENSOR > GSENSOR SETUP > ZERO THE ACCELEROMETER.." (source)

      V500 Mounting Plate

      Timespace V600 Digital Video Recorder (Coming Soon)

      "Timespace also showcased the forthcoming V600 AHD digital video recorder, which will provide operators with the flexibility to introduce the latest high-definition cameras." (source)

      Timespace DVRV600

      Timespace DVRV600

      ○ Coming soon
