Timespace Digital Video Recorders

Brand New Timespace V600

Digital Video Recorder Timespace DVRV600

Digital Video Recorder

○ Timespace DVRV600
○ 20 AHD Channels + 2IP
○ Up to 200fps
○ AHD and IP
○ Up to 4TB HDD
○ Full HD
○ LANLink & PCLink
○ E-Marked
Digital Video Recorder Timespace DVRV400

Digital Video Recorder

○ Timespace DVRV400
○ 8, 12 or 16 Channels
○ Up to 4TB HDD
○ 1080p HD IP Camera
○ LANLink & PCLink
○ E-Marked

The Timespace V Series

There is no one size fits all system when it comes to heavy vehicles, however, when it comes to digital video recorders, SURE have promoted the market leading Timespace range for over 14 years.

H.264 Compression

The V series recorders use H.264 compression to reduce file sizes to a fraction of their original size whilst maintaining video quality. H.264 provides support for resolutions up to 8K UHD and supports up to 16x16 pixel macroblocks.

h.264 vs h.265 compression

Benefits of IP Cameras

IP (Internet Protocol) cameras are powered over ethernet (PoE) and offer a far superior camera image quality/resolution to that of any other camera output. IP cameras can also be more cost-effective as they often cover a much wider range than that of an analogue camera. It would need up to four low-resolution analogue cameras to cover the same recording area as a single IP camera.

AHD vs IP camera images

E11 Certification Vehicle Approval

The E11 Mark is the British specific Mark that covers equipment/vehicles supplied to the automotive industry. This includes commercial vehicles, construction machinery and general vehicle use and basically means the unit has been approved by ECU compliance and quality control regulations. (source)

e11 emarked certification

Timespace V400 Digital Video Recorder

This recorder comes with up to 16 channels of analogue camera inputs and one IP channel input of 1080p HD resolution. The V400 digital video recorder also uses H.264 compression to reduce file sizes to a fraction of their original size whilst maintaining great video quality. The Timespace products are fully compatible with LANLink and PCLink meaning footage can be easily reviewed and this product is e-marked meaning it can be put onto vehicles with all the correct approvals.

DVRV400 recorders also have removable hard-drives up to 4TB meaning you can store recorded footage and remove/replace when the HDD becomes full.

Using watermarking on the V400 will allow you to embed vehicle data into your footage, this includes GPS, date, time, speed and location which "meets the evidential requirements when needed for court proceedings." (source

Digital Video Recorder Timespace DVRV400

Digital Video Recorder

○ Timespace DVRV400
○ 8, 12 or 16 Channels
○ Up to 4TB HDD
○ 1080p HD IP Camera
○ LANLink & PCLink
○ E-Marked
Find out more >>
Specifications

V400 Specification

Feature Capability (8/12/16 Channels) Feature Capability (8/12/16 Channels)
Video Inputs Up to 16 SD Analogue + 1 IP Channel Global Image Rate 100/150/200 IPS
Audio Inputs 2, Selectable Line or Mic Level Hard Disk Drive Up to 4TB
Video Outputs 2 Main / Aux Video Standard PAL/NTSC
SSD Capability Up to 1TB Resolution 1080p IP Channel - 720 x 288 Analogue
Video Compression H.264 Ease Of Install Quick Release Mounting
G-Sensor 3 Axis Approvals E-Marked, CE Mark, R118, RoHS, WEEE
IP Rating IP50 Operating Temperature -10 to 50°C
Alarm Inputs 10 Selectable Alarm Outputs 4 Logic Output
Dimensions (mm)
Including Mounting Plate
292(l) x 132(w) x 143(h) CAN Engineering Data Built-in

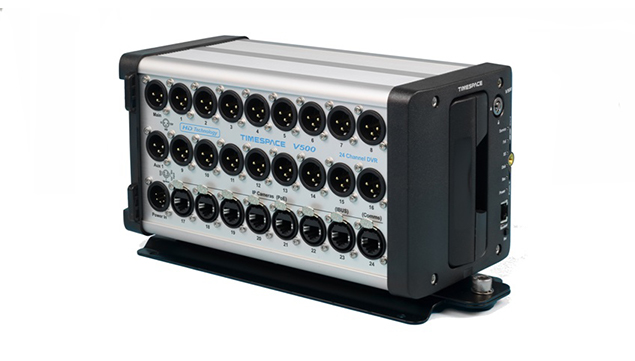

Timespace V500 Digital Video Recorder

This 24 channel V500 digital video recorder provides customers with sixteen channels of analogue camera inputs and eight POE IP channel inputs of 1080p HD resolution. The digital video recorder provides 200fps and uses H.264 compression to reduce file sizes to a fraction of their original size whilst maintaining video quality. The Timespace products are fully compatible with LANLink and PCLink meaning footage can be easily reviewed and this product is e-marked meaning it can be put onto vehicles with all the correct approvals

With this recorder you have the option of integration with bridge alerts which provide early warning of low bridges when operating tall vehicles e.g. Double Decker Buses.

As with the V400, you are able to watermark footage with embedded vehicle data such as date, time, speed and location.

Digital Video Recorder Timespace DVRV500

Digital Video Recorder

○ 16 Analogue Channels
○ 8 1080p IP channels
○ H.264 Compression
○ Up to 200fps
○ 2TB HDD cartridge
○ Optional GPS
○ File encryption
○ E-Marked
Specifications

V500 Specification

Feature Capability Feature Capability
Video Inputs 8 IP and 16 SD Analogue Global Image Rate 200 IPS
Audio Inputs 2, Selectable Line or Mic Level Hard Disk Drive Up to 4TB
4 Video Outputs Programmable Main / Aux Video Standard PAL/NTSC
PoE (Ethernet) All 8 IP Channels Resolution 1080p IP Channel - 720 x 288 Analogue
Video Compression H.264 Ease of Install Quick Release Mounting
G-Sensor 3 Axis Approvals E-Marked, CE Mark, R118, RoHS, WEEE
IP Rating IP50 Operating Temperature -10 to 50°C
Alarm Inputs 10 Selectable 2V – 24V Level Alarm Outputs 4 (Logic Output)
Dimensions (mm)
Including Mounting Plate
292(l) x 132(w) x 143(h) CAN Engineering Data Built-in

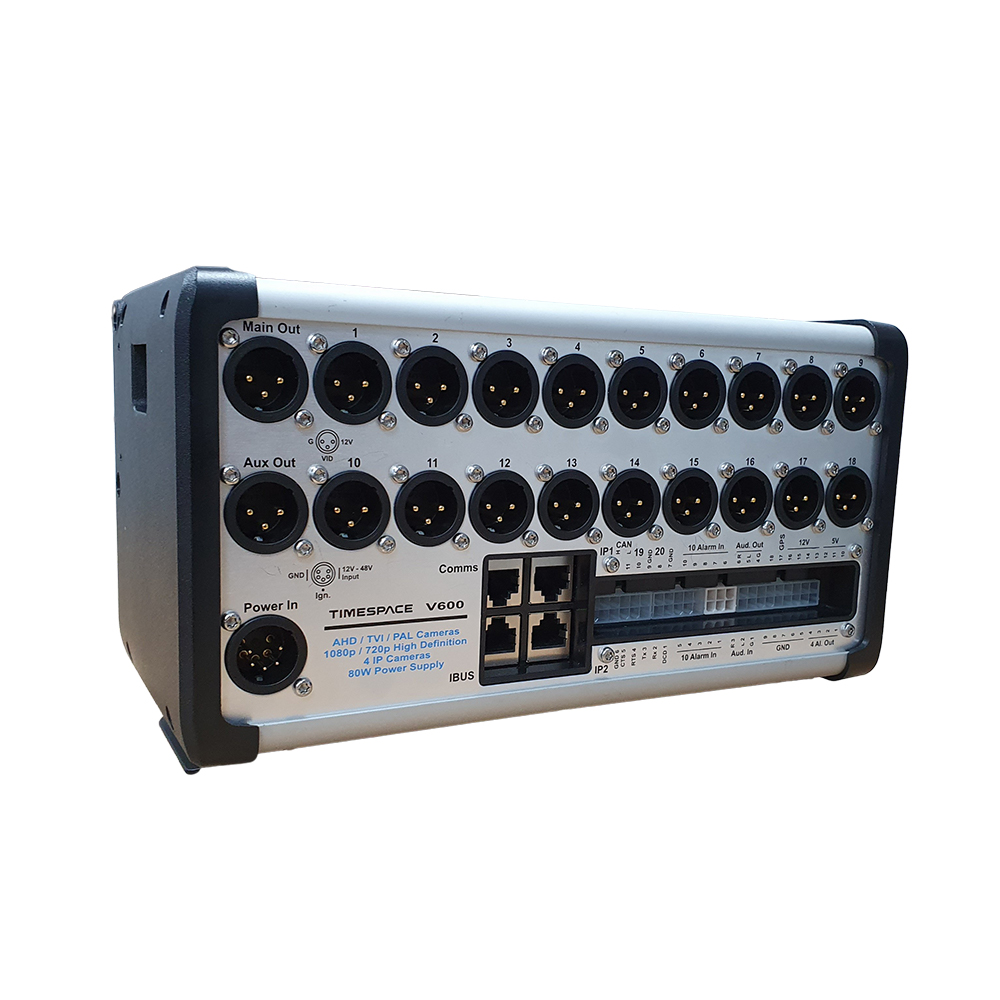

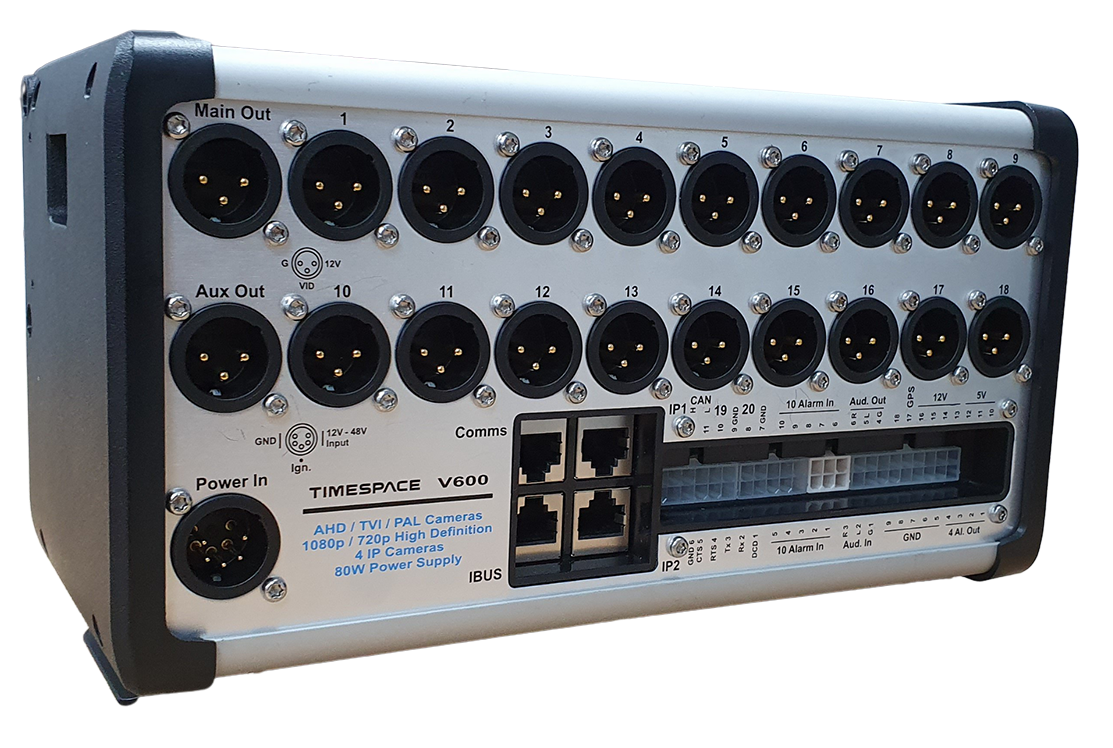

Timespace V600 Digital Video Recorder

Timespace have bought a 20 channel analogue high-definition video recorder to market. The V600 AHD recorder provides operators with the flexibility to introduce the latest high-definition cameras to their vehicles.

With this innovative recorder you will be able to utilise the latest in high-definition AHD or IP cameras. The V600 also allows up to 200fps whilst recording in standard definition or 100fps using high-definition.

One key feature of the V600 is that not only is it plug and play installation, the dimensions are the same as the V400 making it simple when replacing.

This digital video recorder is backwards compatible with older systems where vehicle operators aren't wanting to swap out cameras straight away.

Digital Video Recorder Timespace DVRV600
Digital Video Recorder
○ Timespace DVRV600
○ 20 AHD Channels + 2IP
○ Up to 200fps
○ AHD and IP
○ Up to 4TB HDD
○ Full HD
○ LANLink & PCLink
○ E-Marked
Specifications

V600 Specification

Feature Capability Feature Capability
Video Inputs Up to 20 AHD + 2 IP Channels Global Image Rate 200 IPS
Audio Inputs 2, Selectable Line or Mic Level Hard Disk Drive 1TB, 2TB or 4TB
Video Outputs 2 SD Monitors Video Standard PAL/NTSC/AHD/TVI
Ethernet Ports 4 (Comms, IBUS, IP1, IP2) Resolution for all Channels Up to 1080p Full HD
Video Compression H.264 Camera Installation Plug and Play Install
G-Sensor 3 Axis Approvals E-Marked, CE Mark, R118, RoHS, WEEE
IP Rating IP50 Operating Temperature -10 to 50°C
Alarm Inputs 10 on the 10-Way Molex Alarm Outputs 4 on the 18-Way Molex
Dimensions (mm)
Including Mounting Plate
292(I) x 126(W) x 151(H) CAN Engineering Data Built-in
