Live View and Playback of Camera Footage

Cameras We Supply into the Industry

Our CCTV cameras are trusted by industry leaders in the transport world where video recordings need to come out crisp in the event they are used as evidence in a courtroom. We supply Stortech and Hikvision dome cameras to more than 5,000 Go-Ahead buses on both new installs and vehicle refurbishments.

Cameras are available as both dome or miniature cab shapes. Dome cameras are used more for larger vehicles due to their 360 coverage and flush mounted design. The cab cameras used in smaller vehicles offer HD recording for use with smaller channeled digital video recorders such as the MDVR range.

If you have a fleet of vehicles we will also offer installation through one of our UK based engineers. Your fleet can then be managed using software such as SURE Enterprise which is able to track your fleet through GPS and capture live footage from the vehicle.

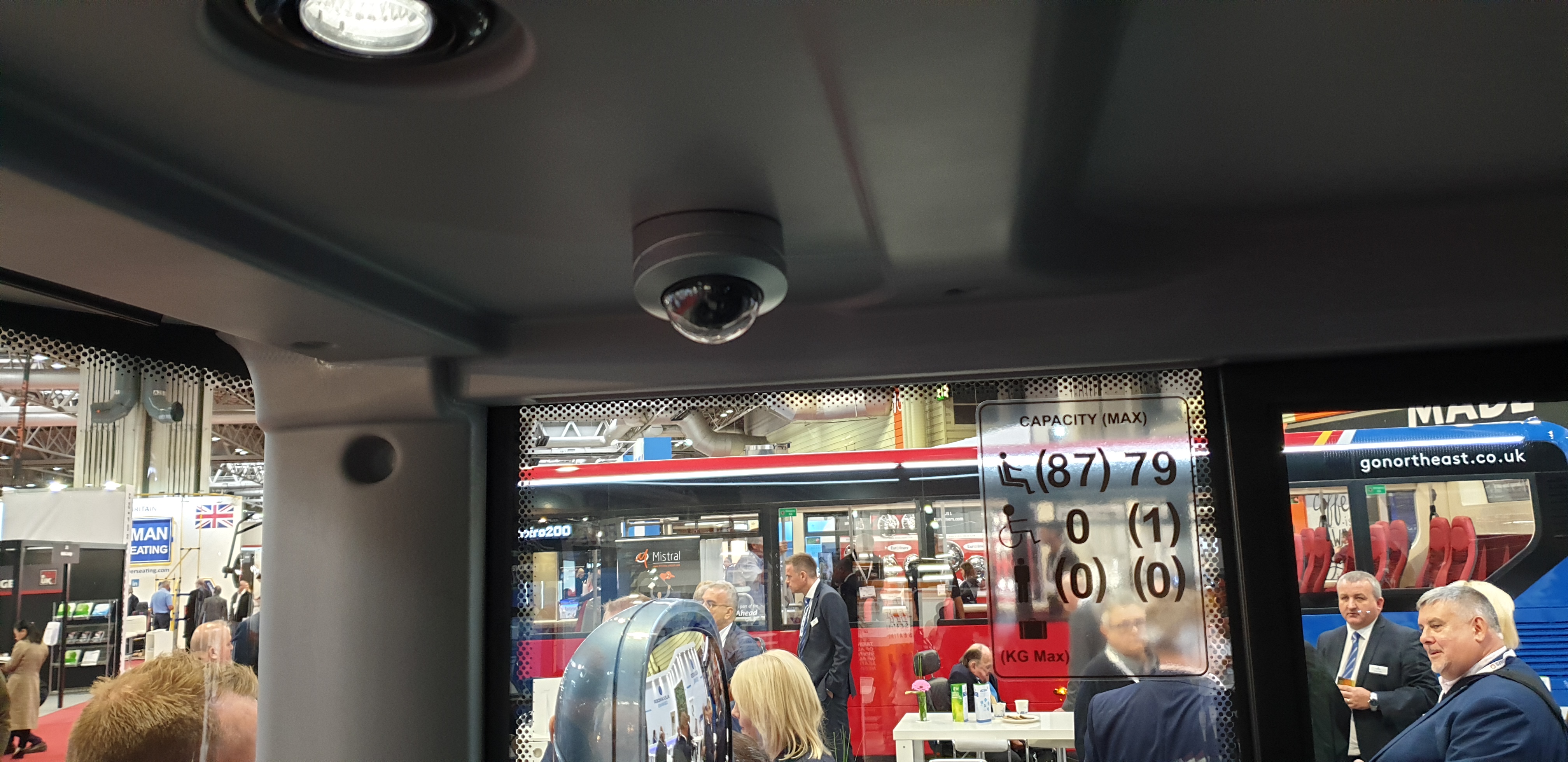

Stortech D056 in Go-Ahead Bus

UK Supplier of Industry Leading Vehicle CCTV

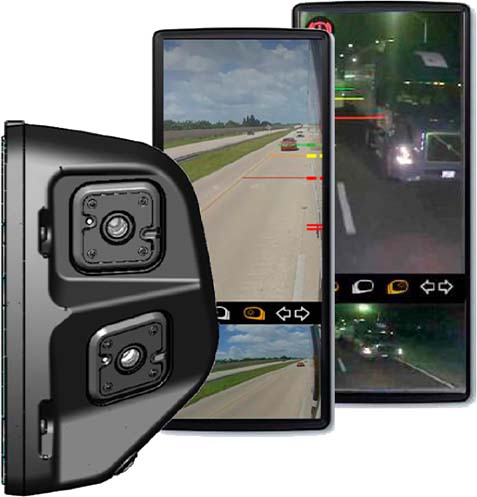

SURE Wing Mirror Camera Electronic

Wing Mirror Camera

○ HD 720p Resolution
○ IP67 Weatherproofing
○ 850nm IR
○ Internal Wing Mirror
○ External Cameras
○ Direct Vision Standard
Find out more >>
Dome Camera Stortech D056C650

Dome Camera

○ Stortech D056C650
○ 2.5, 2.9 & 3.6mm Lens
○ 650TVL Resolution
○ CCD Sensor
○ IP67 Weatherproofing
○ Flush/Wedge Mounted
○ Polycarbonate Housing

Find out more >>
ST815 Cab Camera

Compact Cab Camera

○ 720p High-Definition
○ Tilt Adjustment
○ IP67 Weatherproofing
○ Plug and Play
○ Easy Installation
○ Lightweight
○ 2.3 Fixed Lens
Find out more >>

Analogue Vehicle Cameras

Stortech Analogue Cameras

Stortech are extremely popular with the bus, coach, van and heavy goods vehicle industries with over 30 years of experience developing cameras suitable for transport.

  • Can be Wedge or Flush Mounted: Often when fitting these dome cameras to a vehicle we would use a wedge to create the ideal camera angle so that you can capture a variety of different views where passengers are present.

  • Up to IP67 Weatherproofing: This range is protected with up to Ingress Protection IP67 making all three of these Stortech domes useful for both internal and external fitting.

  • 2DNR Digital Noise Reduction: 2DNR will analyse individual frames of video and correct pixels that are being affected by noise.

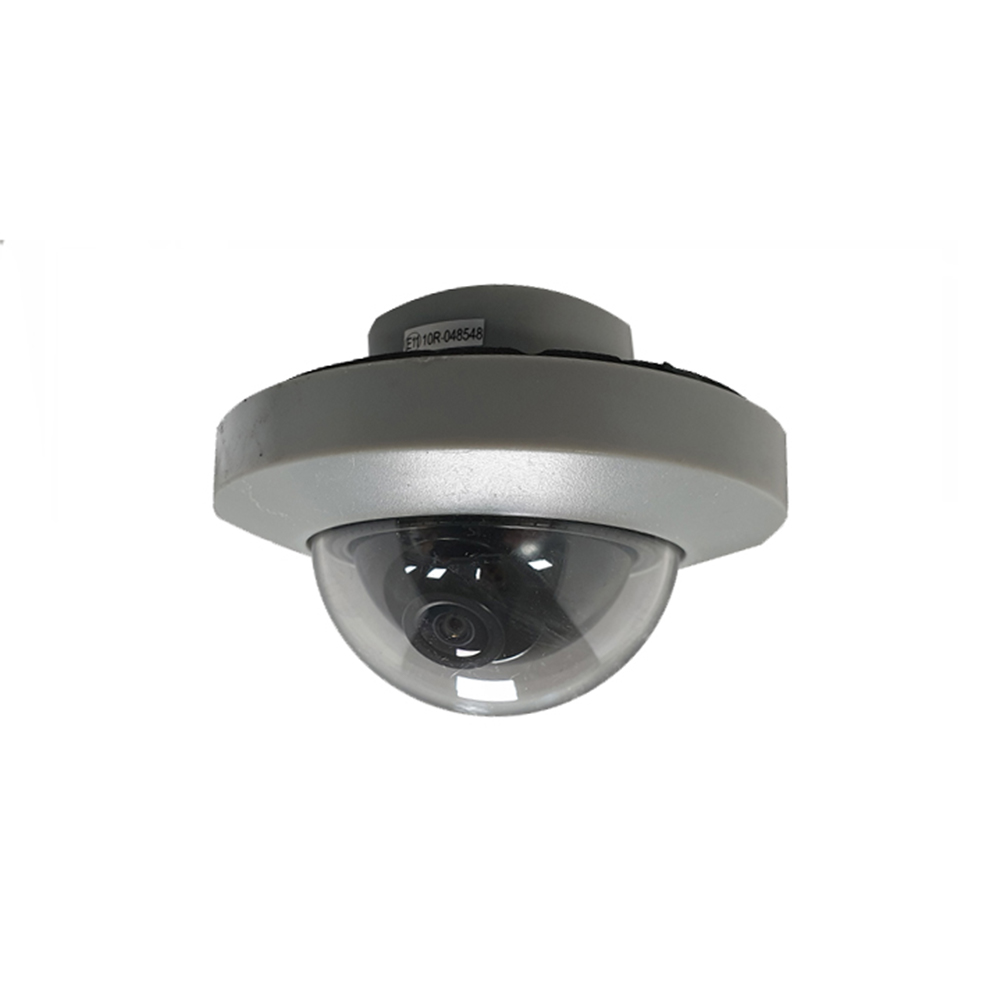

D053-DPX With Wide Dynamic Range

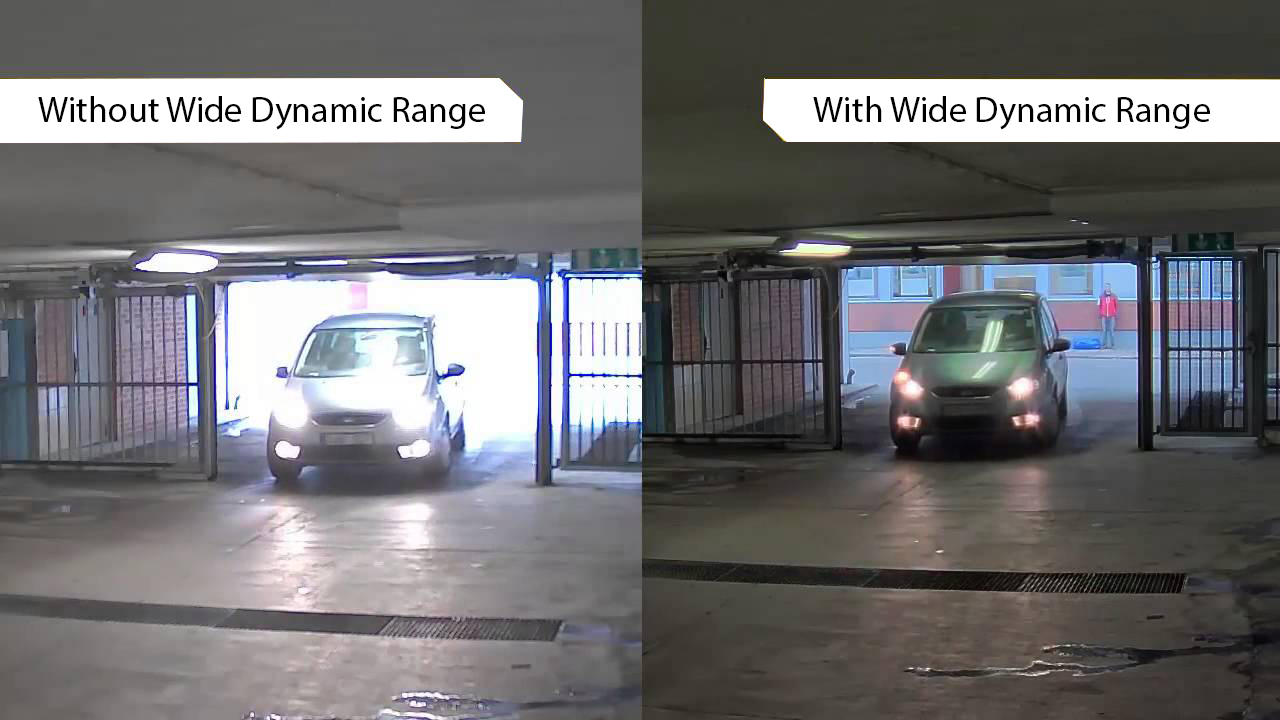

  • Wide Dynamic Range: D053-DPX comes with wide dynamic range meaning when part of an image is extremely bright but another part is so dark that you can't see any details it will correct/balance the difference in lighting to create one level, clear image.
Dome Camera Stortech D053-DPX

WDR Dome Camera

○ Stortech D053-DPX(S)
○ 3.6mm Lens
○ Wide Dynamic Range
○ 550TVL Resolution
○ CMOS Sensor
○ IP66 Weatherproofing
○ Flush/Wedge Mounted
○ E-Marked

Find out more >>

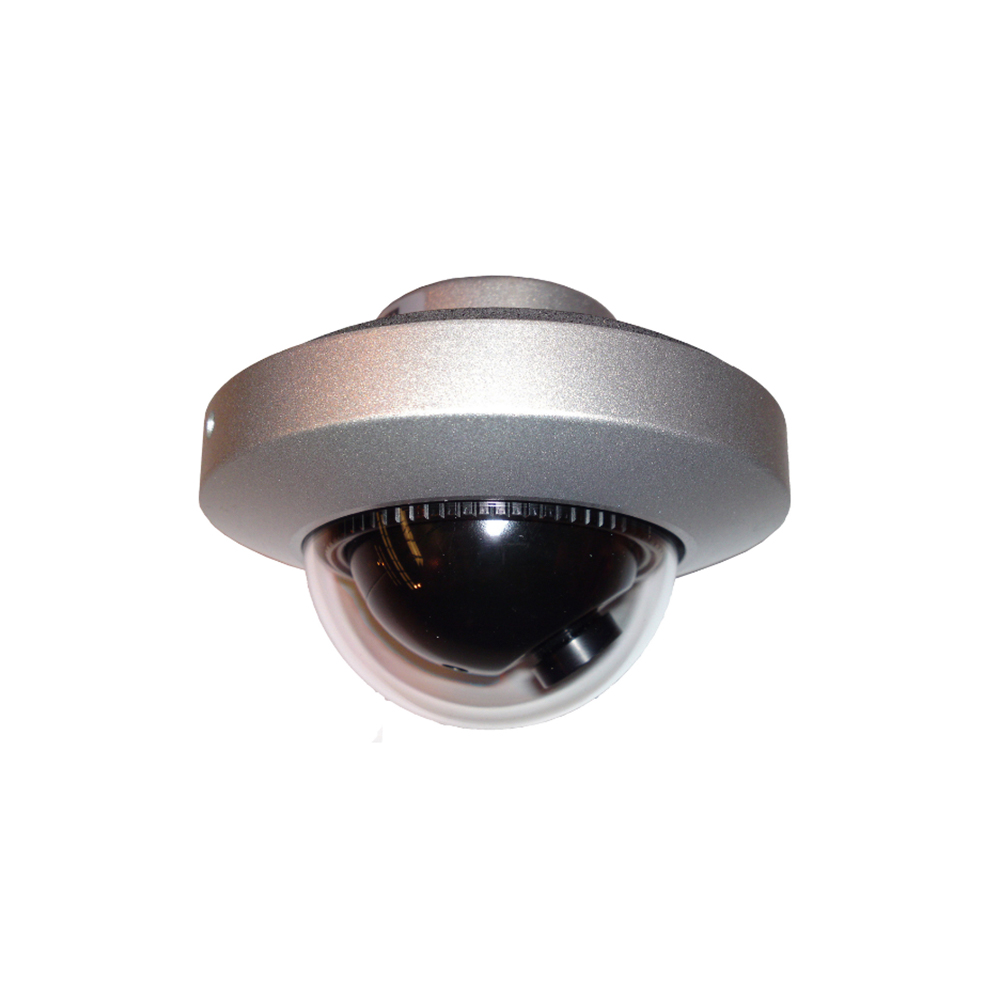

Stortech D056C650 Analogue Camera

  •  The D056C650 model comes with a CCD sensor which creates the ability to transport charge across the chip without any distortion. CCD will create high-quality, low-noise images where CMOS is traditionally susceptible to noise.

  • This dome camera can also be flush mounted and is IP67 which means this camera can be dropped into a body of water up to a meter deep for half an hour. This makes the D056 both an indoor and outdoor camera.

Dome Camera Stortech D056C650

Dome Camera

○ Stortech D056C650
○ 2.5, 2.9 & 3.6mm Lens
○ 650TVL Resolution
○ CCD Sensor
○ IP67 Weatherproofing
○ Flush/Wedge Mounted
○ Polycarbonate Housing
○ E-Marked

Find out more >>

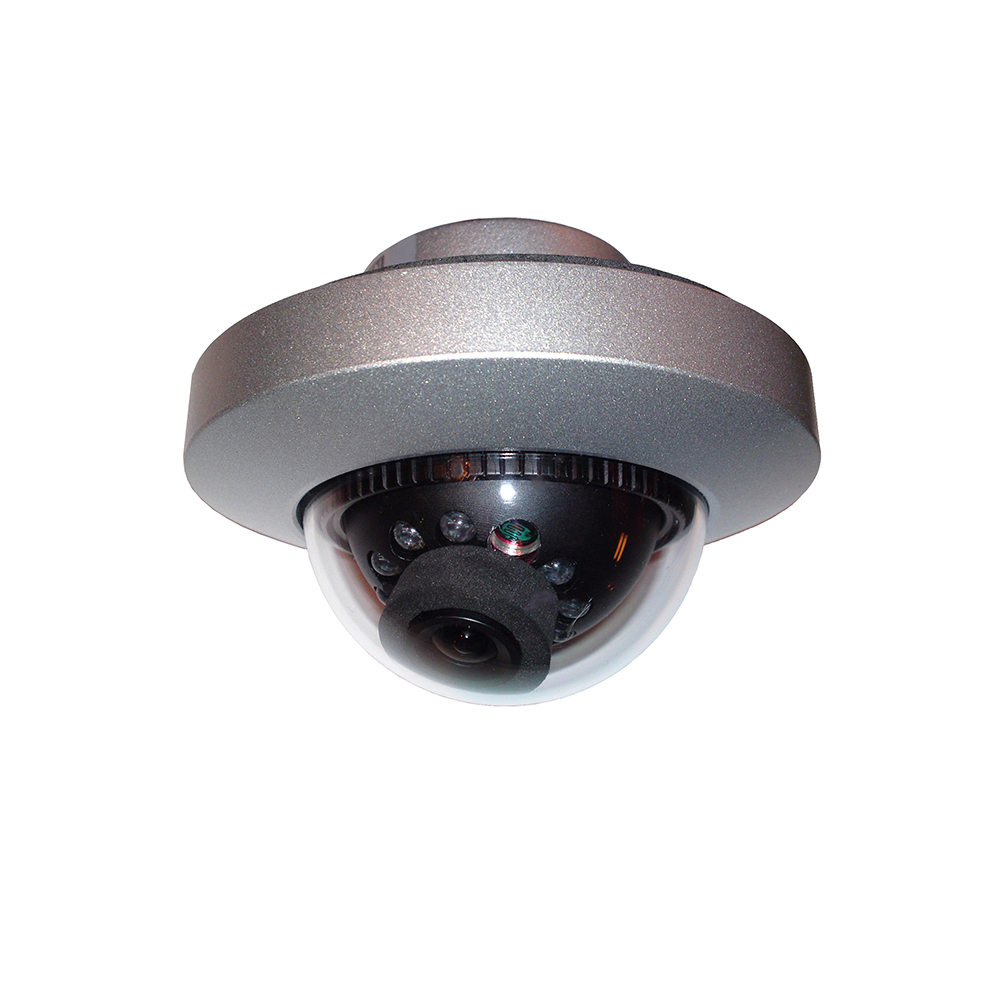

D057-650-COV With 940nm of Infrared Lighting

  • 940nm Covert IR: D057-650-COV is our 940nm covert IR option of the D057. 940nm also known as 'covert IR' will not produce a red glow whilst recording which makes it the ideal camera to use on vehicles where red signals could be confusing e.g. brake lights. This camera is safe to use both internally or externally where lighting may be limited and is often used in the footwell of the driver cab or on the outside of the vehicle for use through tunnels or during night.
Dome Camera Stortech D057 Covert

IR Dome Camera

○ Stortech D057-650-COV
940nm Infrared Lighting
○ 2.5, 2.9 & 3.6mm Lens
○ 650TVL Resolution
○ CCD Sensor
○ IP67 Weatherproofing
○ Flush/Wedge Mounted
○ E-Marked

Find out more >>

What is IP Rating IP67?

 IP or Ingress Protection ratings are international standard ratings to define the sealing effectiveness of electrical enclosures against dirt, moisture and foreign bodies. The first number that follows IP has a specific meaning which indicates the level of protection the equipment has to foreign bodies excluding water. The second number will identify the level of protection the product has to moisture (submersion, drips, sprays etc).

(6) Totally dust-tight. Full protection against dust and other particulates, including a vacuum seal, tested against continuous airflow.

(7) Protection against full immersion for up to 30 minutes at depths of 3 feet.

Analogue High Definition Vehicle Cameras

Stortech High-Definition Analogue (AHD)

Stortech offer two analogue high-definition dome cameras for vehicle fitting which are e-marked and produce 960p footage.

  • 960p HD Resolution: 960p also known as Super XGA is high definition footage captured in a 4:3 aspect ratio.

  • IP67 Weatherproofing: This range is protected with up to Ingress Protection IP67 making all three of these Stortech domes useful for both internal and external fitting.

  • Can be Wedge or Flush Mounted: Often when fitting these dome cameras to a vehicle we would use a wedge to create the ideal camera angle so that you can capture a variety of different views where passengers are present.

D057-AHD-S With 850nm of Infrared Lighting

  • 850nm IR: 850nm is 30% more effective when illuminating over distance than its covert IR counterpart, however, it will produce a faint red glow which could be mistaken for a brake light. We recommend not using this camera on the outside rear of the vehicle and generally this camera would be used internally where dark spots occur.
Dome Camera Stortech D056-AHD

HD Dome Camera

○ Stortech D056C650-AHD
○ 2.5mm Lens
○ 960p HD Resolution

○ IR Cut Filter
○ AHD CMOS Sensor
○ IP67 Weatherproofing
○ Flush/Wedge Mounted
○ E-Marked

Find out more >>
Dome Camera Stortech D057 Covert

HD IR Dome Camera

○ Stortech D057-AHD-S
 2.5 or 3.6mm Lens
850nm Infrared Lighting
960p HD Resolution
○ CMOS Sensor
○ IP67 Weatherproofing
○ Flush/Wedge Mounted
○ E-Marked

Find out more >>
IP (Internet Protocol) Vehicle Cameras
HikVision IP Cameras

HikVision IP cameras are an essential part of any bus or coach build. Our internet protocol cameras are often fitted in the areas of which you wish to capture the clearest footage as these will record in high-definition. The IP camera can either be directly plugged into the DVRV400 LAN port or is connected to the digital video recorder via a router LAN connection.

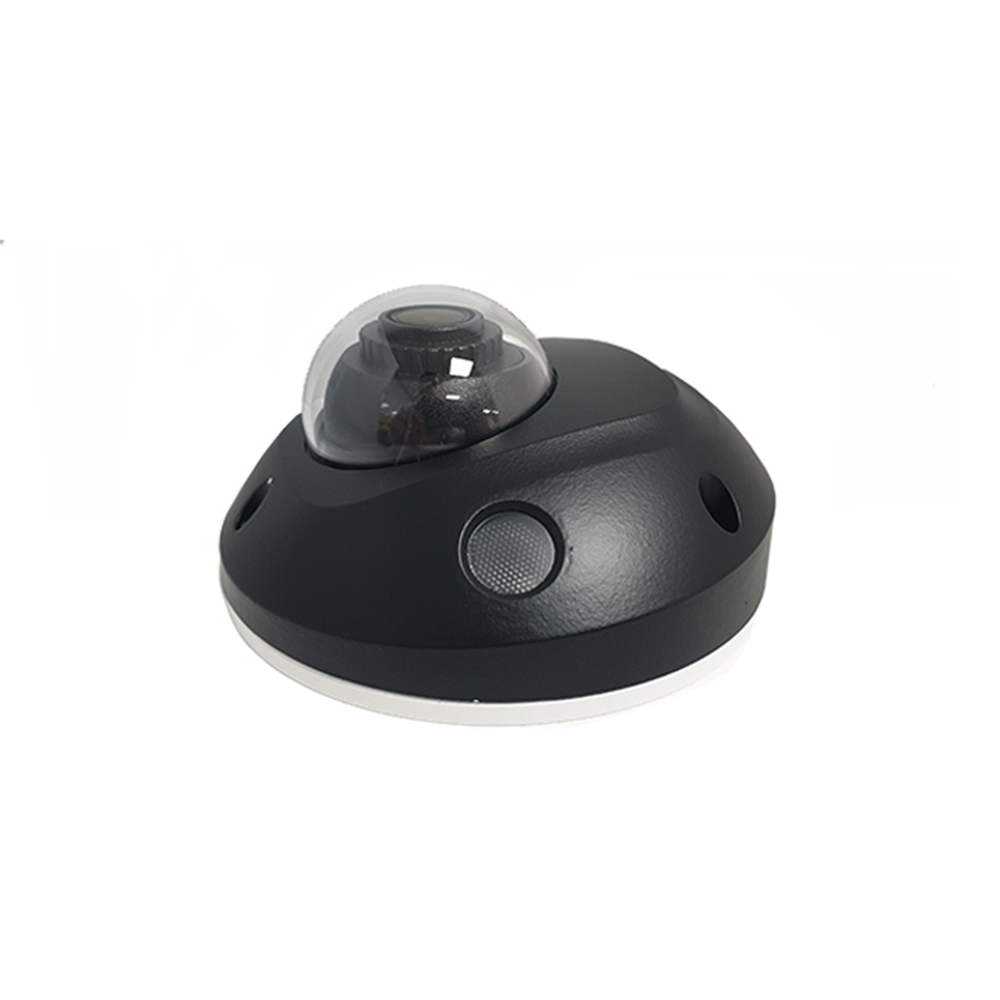

Model DS-2XM6726FWD-I also comes with IP67 weatherproofing and wide-dynamic range which provides clear footage when part of an image is extremely bright but another part is so dark that you can't see any details, that's dynamic range—the difference in lighting.

Cameras with wide dynamic range (WDR) have special software that allows them to balance that lighting for one clear image.

HikVision Camera Benefits

  • 2K 4MP Resolution Cameras

  • H.265 Video Compression

  • Wide Dynamic Range

  • IP67 Weatherproofing

  • 840nm IR Capability for Night Recording

  • Integration with Other On-Board Systems

Dome Camera Stortech D056-AHD
1080p Dome IP Camera

○ DS-2XM6726FWD-I
○ 2, 2.8, 4. 6 or 8mm lens
○ 1080P High Definition
○ CMOS sensor
○ IR cut filter
○ IP67 weatherproof
○ 120dB WDR
○ 3D DNR

Find out more >>
Dome Camera Stortech D057 Covert
2K HD Dome IP Camera

○ DS-2CD2545FWD
○ 2.8, 4. 6 or 8mm lens
○ 4MP 2K resolution 30fps
○ CMOS sensor
○ IR cut filter
○ IP67 weatherproof
○ 120dB WDR
○ 3D DNR

Find out more >>
Miniature Cab Cameras
Analogue High-Definition Cab Cameras

The driver's cab and the rear storage of a vehicle are often fitted with a more compact cab camera. The benefit of using the cab cameras is that the footage recorded is captured in high-definition and is easily connected to our MDVR range for quick installation. This means you are able to identify people entering and exiting the vehicle as well as monitoring the driver's behaviour whilst operating a van, HGV or taxi.

On the SURE Transport website, we offer CCTV kits that have been pre-built for van and HGV use. We offer two 4 camera kits, one with a hard-drive and one which uses SD cards. For more information click here

Cab Camera Benefits

  • Compact Camera

  • Integration with Other On-Board Systems

  • High-Definition Recording (HD)

  • Tilt Adjustment for Ideal Recording Angles

  • IP67 Weatherproofing

  • Plug and Play / Easy Installation

  • Lightweight

Dome Camera Stortech D056-AHD
Mini Cab Camera
○ ST815
○ 1/4” CMOS Sensor AR0141
○ 1.0M pixels
○ Lens F2.3mm Standard
○ IP67 Weatherproofing
○ TV System: PAL
○ 1280(H)*720(V)
○ Tilt Adjusting -52°~+52°
Find out more >>
Dome Camera Stortech D056-AHD
Mini Cab Camera
○ SV6-2.3AHD
○ 1/4” CMOS sensor AR0141
○  TV System: PAL
○ 1280(H)*720(V)
○ 1.0M pixels
○ F2.3mm Standard Lens
○ 12V DC ±10%
○ IP67 weatherproofing
Find out more >>

VB4112HR

VB4112HR

VB4112HR

○ 2.8mm Lens
○ IP67 Weatherproofing
○ 650TV Lines
○ Power consumption 110mA
○ Power Supply 12V DC ±10%
○ Dimensions D73 x H49 mm
○ Wide Dynamic Range
Find out more >>
