Concept Pro Vandal Resistant VB4112HR

Customer Benefits

○ Flush Mounting for Vandal Resistance
○ Optional 2.5/3.6mm Lenses
○ IP67 Weather-Resistant Casing for External Mounting
○ Optional Wedge for Angled View
○ Easy Installation for Ceilings and Walls (Including Vehicles)
○ High Resolution (650 TV Lines)
○ Wide Dynamic Range 120dB
○ E-Marked for Vehicle Use

Enclosed in a hardened polycarbonate dome and IP67 weather-resistant casing, the VB4112 provides an effective, robust surveillance solution for a range of vehicle security applications.

The VB4112 features a 2.5mm or 3.6mm fixed lens as standard and is available in either a black or brushed steel finish. Angled surface mount adaptors are available for easy installation on ceilings and walls, surface or flush mounted.

The camera is also E-marked for vehicle use.

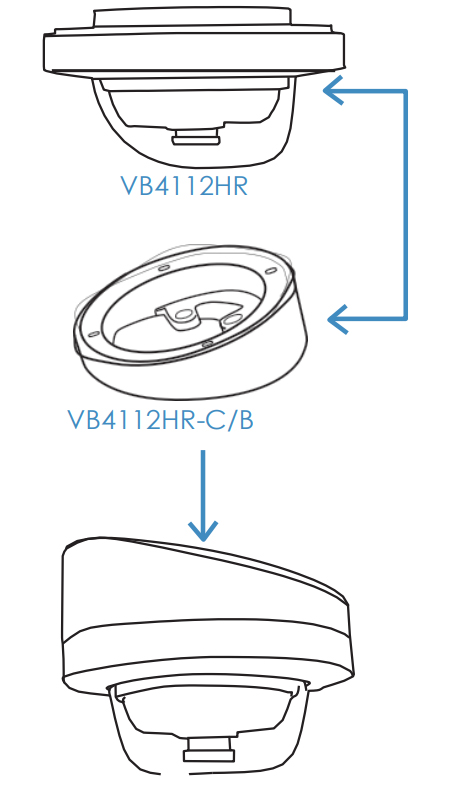

VB4112HR Optional Wedge Fitting

4 ST815 Cameras Plugged into MDVR4S

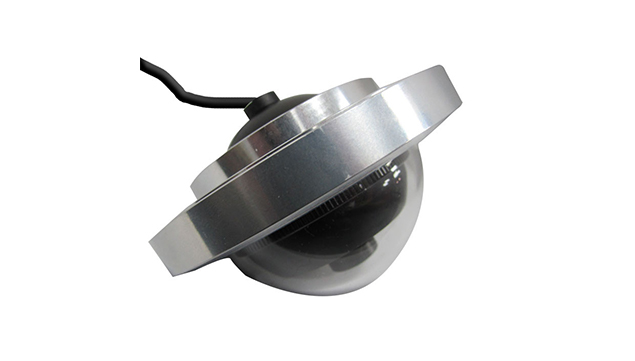

VB4112HR Vandal Resistant Transport Camera

1/3” Sony Super HAD II Low Lux CCD
Wide Dynamic Range
2.5mm Or 3.6mm
Signal Process
Digital Signal Process
TV System
650TV Lines
S/N Ratio
More than 48 dB, (AGC Off)
Standard Illumination
2000Lux (3200k)
Sensitivity (1/3 Output)
Electronic Shutter Setting
(1/50 - 1/10000)
Back Light Compensation
Video Output
Composite :1Vp-p Composite 75,Unbalanced
Scanning Frequency
    Wide Dynamic Range
    ST815-720p Cab Camera


    ○ 2.5 or 3.6mm Lens
    ○ IP67 Weatherproofing
    ○ 650TV Lines
    ○ Power consumption 110mA
    ○ Power Supply 12V DC ±10%
    ○ Dimensions D73 x H49 mm
    ○ Net Weight 168g
    ○ Wide Dynamic Range

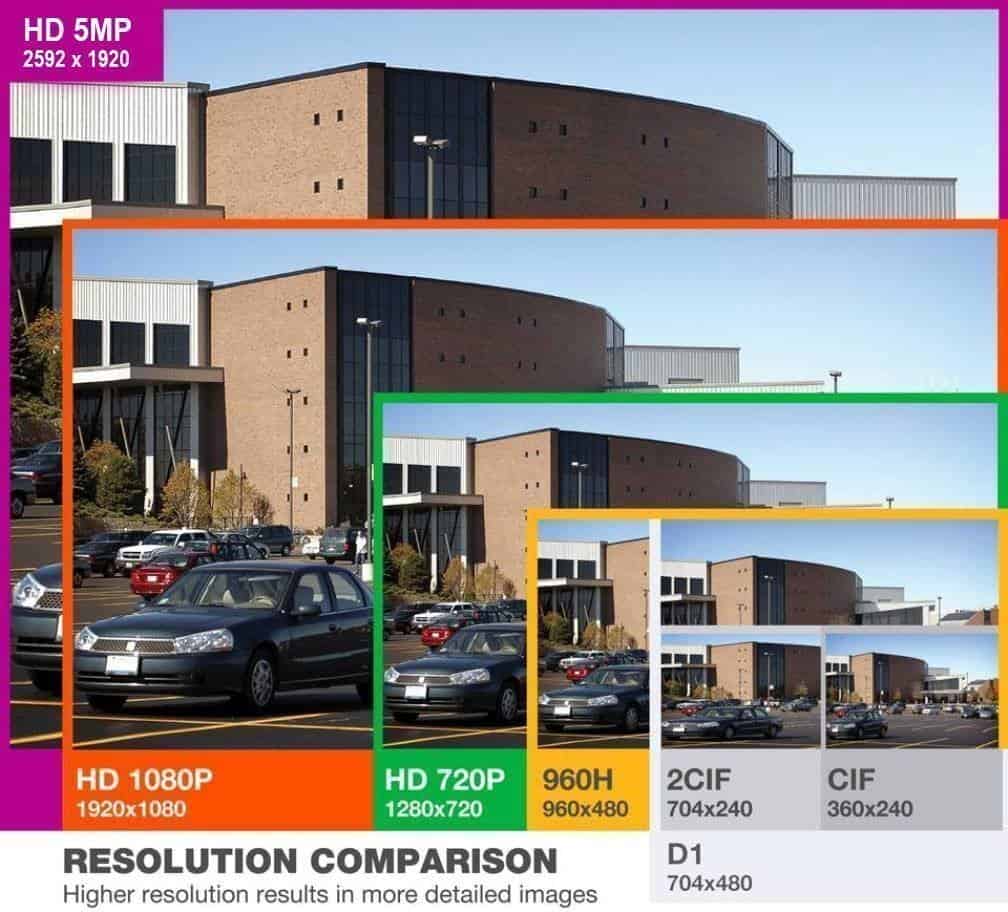

    Resolution Comparison HD
