The ST815-720p Cab Camera

The driver's cab and the rear storage of a vehicle are often fitted with a more compact cab camera. The benefit of using the cab cameras is that the footage recorded is captured in high-definition and is easily connected to our MDVR range for quick installation. This means you are able to identify people entering and exiting the vehicle as well as monitoring the driver's behaviour whilst operating a van, HGV or taxi.

On the SURE Transport website, we offer CCTV kits that have been pre-built for van and HGV use. We offer two 4 camera kits, one with a hard-drive and one which uses SD cards. For more information click here

Customer Benefits

○ Compact Camera
○ Integration with Other On-Board Systems
○ Compatible with LANLink and PCLink for Live Viewing
○ High-Definition Recording (HD)
○ Tilt Adjustment for Ideal Recording Angles
○ Flush Mounting with IP67 Weatherproofing
○ Plug and Play / Easy Installation
○ Lightweight

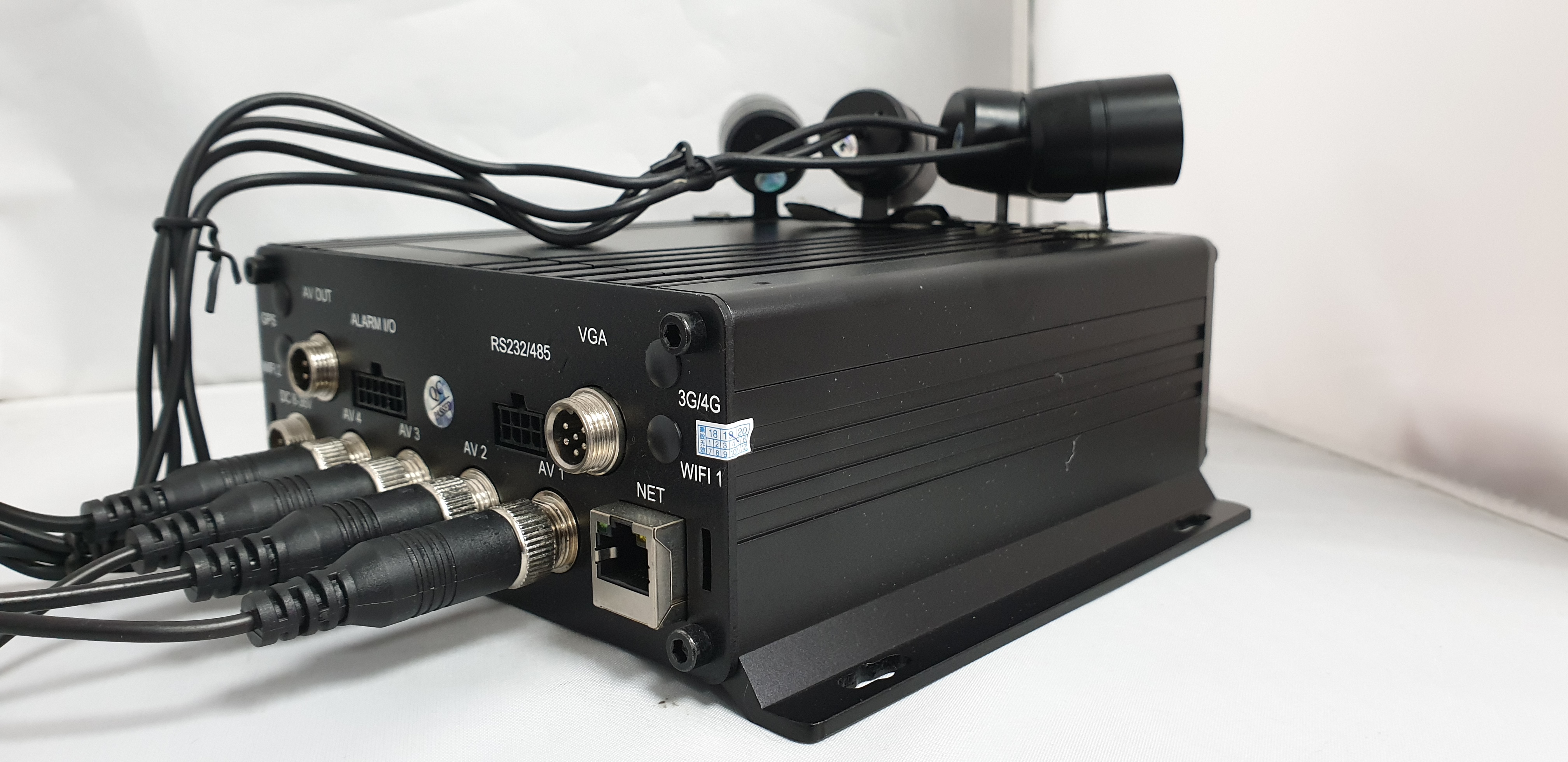

4* ST815s Plugged into MDVR4S

4 ST815 Cameras Plugged into MDVR4S

ST815-720p Super Miniature Cab Camera (AHD)

Sensor
1/4” CMOS Sensor AR0141
Picture Elements
1280(H)*720(V)
TV System
PAL
Effective Pixels
1.0M Pixels
S/N Ratio
More than 48 dB, (AGC Off)
Auto Gain Control (AGC)
Auto
White Balance
Auto
Electronic Shutter Setting
Auto
Back Light Compensation
Auto
Electronic Shutter
AUTO/ 1/50(1/60)-1/100,000sec
Video Output
1 Vp-p, 75Ocomposite 4 ways Din jack x1
Tilt adjustment
--52 - +52
Lens
2.3mm Standard Fixed Lens
    ST815-720p Cab Camera

    ST815-720P

    ○ 1.0M pixels
    ○ IP67 Weatherproofing
    ○ Lens Mount M12XP0.5mm
    ○ Power consumption 70mA
    ○ Power Supply 12V DC ±10%
    ○ Dimensions (ø X H) 24.4x36mm
    ○ Net Weight 96g
    ○ Weatherproof IP67
    Resolution Comparison HD

    CCTV Kit Options

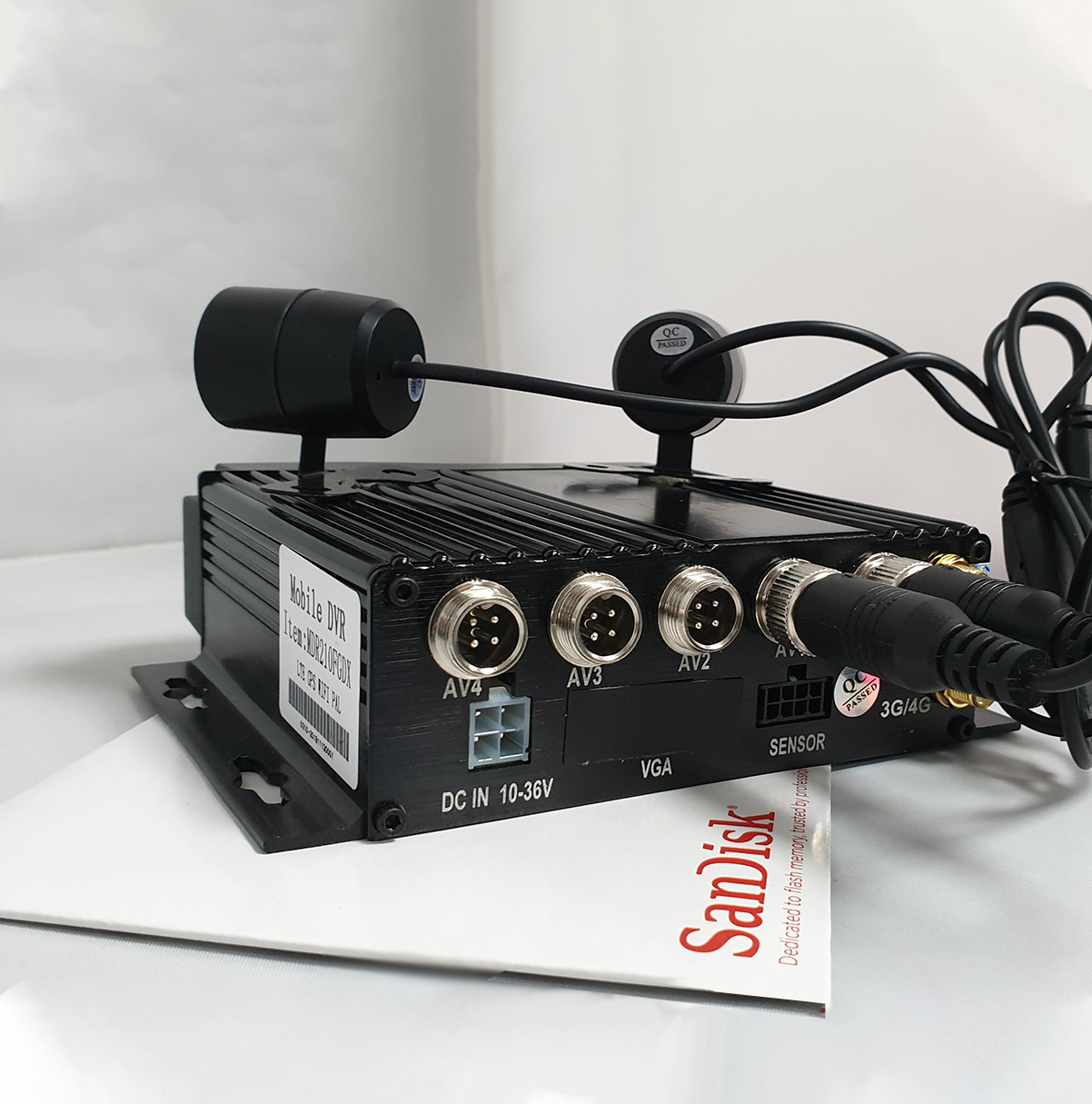

    MDVR4S 2 camera kit

    2 Camera Kit (SD Version)

    ○ 4 Channel Digital Video Recorder
    ○ 2x 720p ST815 CCTV Cameras
    ○ 1x 128GB Sandisk SD card
    ○ 2x 10M RCM extension cables
    ○ 2x 5M RCM extension cables
    ○ 112mm (L) x 138mm (W) x 36mm (D)
    £238.80 inc VAT - Buy Here
    4 Camera Kit SD version

    4 Camera Kit (SD Version)

    ○ 4 Channel Digital Video Recorder
    ○ 4x 720p ST815 CCTV Cameras
    ○ 1x 128GB Sandisk SD card
    ○ 2x 10M RCM extension cables
    ○ 2x 5M RCM extension cables
    ○ 112mm (L) x 138mm (W) x 36mm (D)
    £330.00 inc VAT - Buy Here
    4 Camera Kit HDD version

    4 Camera Kit (HDD Version)

    ○ 4 Channel Digital Video Recorder
    ○ 4x 720p ST815 CCTV Cameras
    ○ 1x 1TB Barracuda Hard-Drive
    ○ 2x 10M RCM extension cables
    ○ 2x 5M RCM extension cables
    ○ 188mm (L) x 187mm (W) x 67mm (D)
    £466.80 inc VAT - Buy Here
