CCTV Kits for Smaller Vehicles (Taking the Stress Out)

SURE supply vehicle kits prepared and delivered to the specific requirements of the customer, ready to be fitted on the production line. SURE hold stock of all equipment for overnight delivery or work to order schedules.

SURE has nationwide engineering resource for new build, retrofit and service work. We work with various companies and auto electricians in the UK and are happy to work with our client's preferred engineers.

"In April, Nottinghamshire based SURE Transport delivered an all in one CCTV kit. Having worked with many Tier 1 and 2 operators over the past few years, SURE Transport now offers a kit which is available to the public and relieves all of the stress involved in purchasing CCTV equipment. At affordable prices, SURE Transport now offers a 2 camera and a 4 camera kit which includes DVR, cameras, hard drives, SD cards and extension cables." (source)

The MDVR4 and MDVR4S are 4 channel, high definition digital video recorders fit for the transport industry. These DVRs are built to last with their airtight, dust resistant and vibration resistant casing. The MDVR4 / 4S can both come with built in GPS, Wi-Fi and 4G data for camera live viewing and tracking. These 4 channel DVRs are better suited for smaller vehicles such as vans, cars and emergency vehicles and offer easy installation with their plug and play approach to setting up.

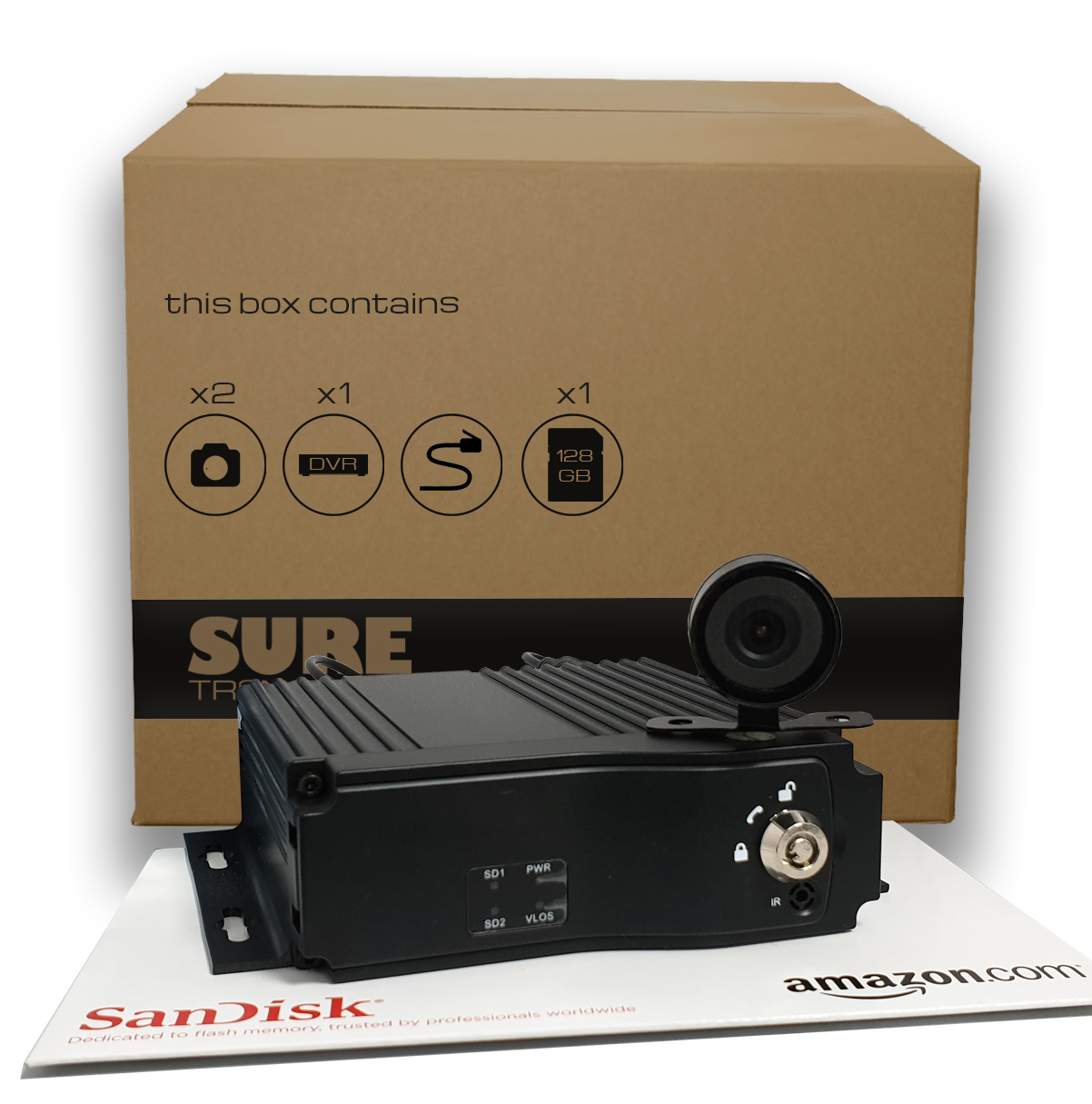

MDVR4S 2 camera kit

2 Camera Kit (SD Version)

○ 4 Channel Digital Video Recorder
○ 2x 720p ST815 CCTV Cameras
○ 1x 128GB Sandisk SD card
○ 2x 10M RCM extension cables
○ 2x 5M RCM extension cables
○ 112mm (L) x 138mm (W) x 36mm (D)
£238.80 inc VAT - Buy Here

Get a Quote for your Vehicle Today!

CCTV Kit Options, Perfect for 4-8 Camera Vehicles

HGV cctv schematic
van cctv schematic
4 Camera Kit SD version

4 Camera Kit (SD Version)

○ 4 Channel Digital Video Recorder
○ 4x 720p ST815 CCTV Cameras
○ 1x 128GB Sandisk SD card
○ 2x 10M RCM extension cables
○ 2x 5M RCM extension cables
○ 112mm (L) x 138mm (W) x 36mm (D)
£330.00 inc VAT - Buy Here

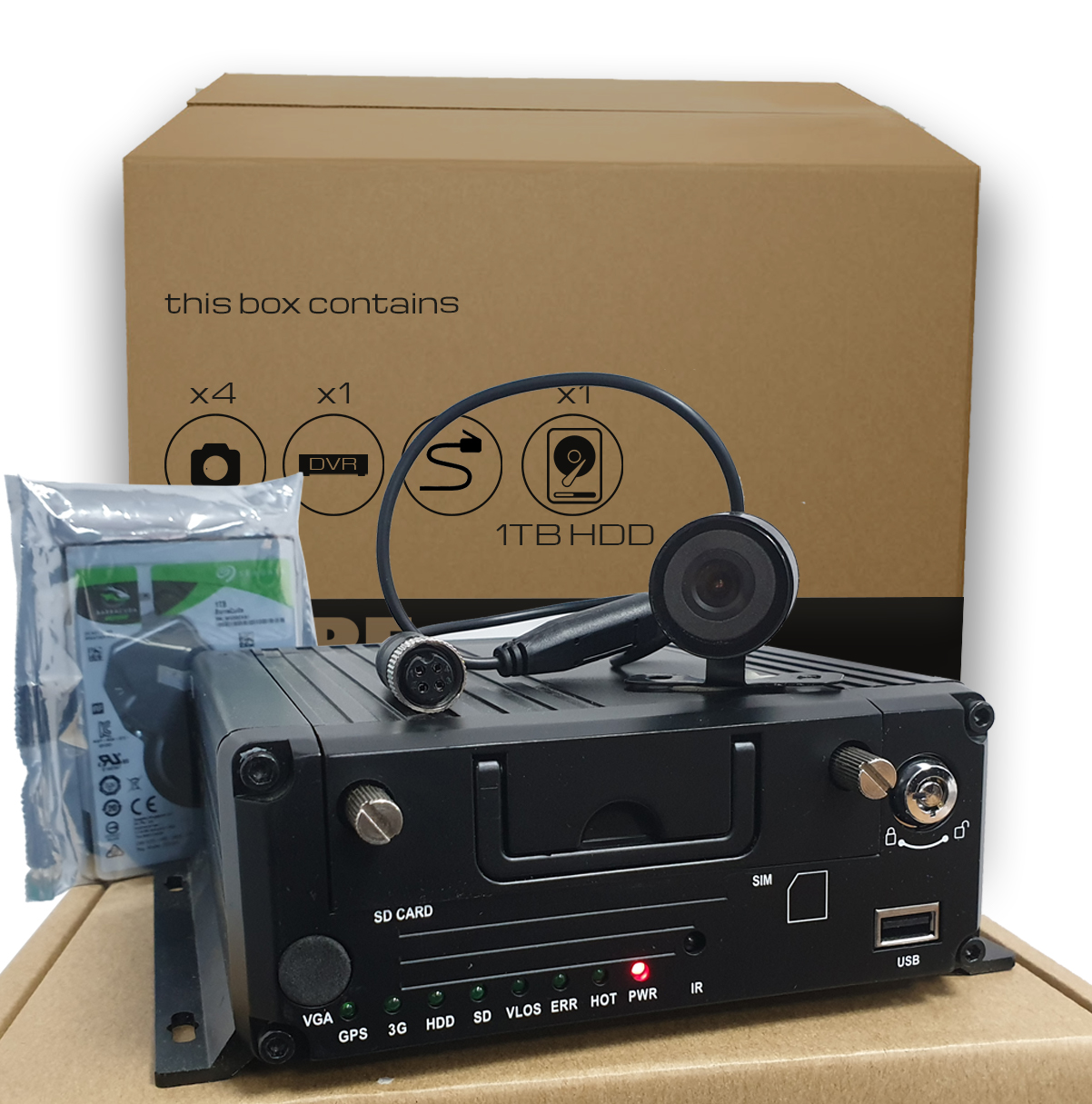

4 Camera Kit HDD version

4 Camera Kit (HDD Version)

○ 4 Channel Digital Video Recorder
○ 4x 720p ST815 CCTV Cameras
○ 1x 1TB Barracuda Hard-Drive
○ 2x 10M RCM extension cables
○ 2x 5M RCM extension cables
○ 188mm (L) x 187mm (W) x 67mm (D)
£466.80 inc VAT - Buy Here

Where Should the Cameras Face?

When looking into heavy goods vehicle CCTV it is important to know what you are wanting to capture and how many cameras are required to capture the necessary footage. On the below diagram labelled "HGV Schematic CCTV Placement" there is an example of what your vehicle may look like.

(1) The external forward facing camera which will capture other road users at the front of the vehicle.
(2) The internal camera which will monitor the goods kept inside the vehicle and will be useful to capture burglary/vandalism inside the vehicle.
(3) The side-view camera, important for monitoring traffic/pedestrians on the left of the vehicle.
(4) The internal cab-view camera, used for monitoring drivers behaviour (can be used in court/legal cases where the driver is blamed)
(5) Rear facing external camera for monitoring vehicles at the rear and capturing those entering the internal storage area.
(6) Right-side external camera for monitoring the right side of the vehicle (similarly to the left camera).

HGV Schematic CCTV Placement

HGV Schematic
HGV schematic cameras

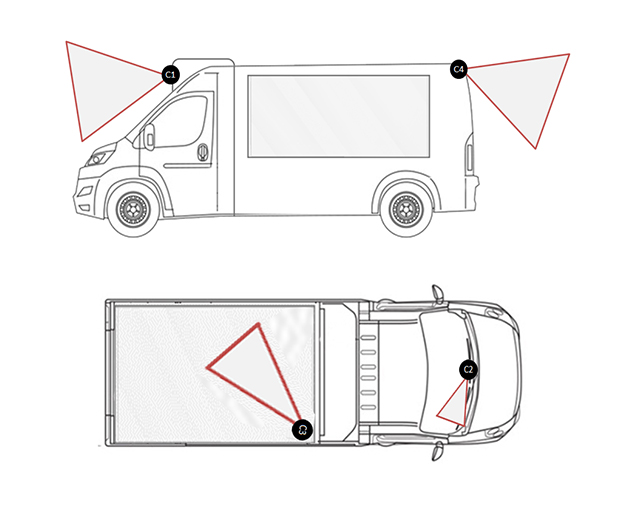

Sprinter CCTV Layout

Van cctv placement

With a van you will need fewer cameras than a HGV, as you can see from the 'Sprinter CCTV Layout'. In this schematic there are four labelled cameras:

(1) The external forward facing camera which will capture other road users at the front of the vehicle.
(2) The internal cab-view camera, used for monitoring drivers behaviour (can be used in court/legal cases where the driver is blamed)
(3) The internal camera which will monitor the goods kept inside the vehicle and will be useful to capture burglary/vandalism inside the vehicle.
(4) Rear facing external camera for monitoring vehicles at the rear and capturing those entering the internal storage area.

SURE MDVR4S & MDVR4

MDVR Range 4 channels
Available Channels (MDVR4) (MDVR4S)
4
Resolution
720p High Definition
Compression
H.264
Security
File Password Protection and Encrypted
Storage (MDVR4) (MDVR4S)
(2TB HDD + 128GB SSD) (128GB SSD + 128GB SSD)
G-Sensor
3-Axis
Operating System
Linux
Solid State Disk
(128GB) (2*128GB)
Channel Type
AHD
Alarm Inputs
(6) (4) inputs
Audio Microphone Inputs
4 Inputs
Operating Temperature
-20℃ to +70℃
Weight
(1.9kg) (0.36kg)
    SURE MDVR4 Digital Video Recorder

    MDVR4 (W3G) (W4G)

    ○ 4 channels
    ○ 2TB HDD cartridge
    ○ 720p AHD camera support
    ○ Optional GPS, WiFi & 4G
    SURE MDVR4S Digital Video Recorder

    MDVR4S (W3G) (W4G)

    ○ 4 channels
    ○ 2* 128GB SD card
    ○ 720p AHD camera support
    ○ Optional GPS, WiFi &4G

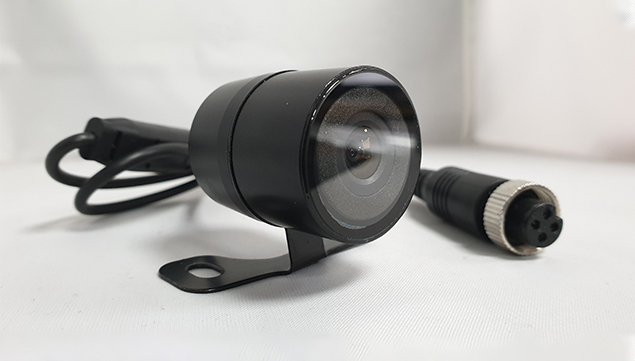

    ST815-720p Super Miniature Cab Camera (AHD)

    ST815 cab camera
    Sensor
    1/4” CMOS Sensor AR0141
    Picture Elements
    1280(H)*720(V)
    TV System
    PAL
    Effective Pixels
    1.0M Pixels
    S/N Ratio
    More than 48 dB, (AGC Off)
    Auto Gain Control (AGC)
    Auto
    White Balance
    Auto
    Electronic Shutter Setting
    Auto
    Back Light Compensation
    Auto
    Electronic Shutter
    AUTO/ 1/50(1/60)-1/100,000sec
    Video Output
    1 Vp-p, 75Ocomposite 4 ways Din jack x1
    Tilt adjustment
    --52 - +52
    Lens
    2.3mm Standard Fixed Lens
      ST815-720p Cab Camera

      ST815-720P

      ○ 1.0M pixels
      ○ IP67 Weatherproofing
      ○ Lens Mount M12XP0.5mm
      ○ Power consumption 70mA
      ○ Power Supply 12V DC ±10%
      ○ Dimensions (ø X H) 24.4x36mm
      ○ Net Weight 96g
      ○ Weatherproof IP67
